IDP59185-C-L | 18.5" Operation Monitor

IDP59185-C-L | 18.5" Operation Monitor

18.5 inch industrial display operation panel

Economy version with an optimal price-performance ratio;

Aluminum die-casting box design;

Modular design, option operation display panel;

Buttons option: Push button, Rotatable switch, Key switch、Emergency stop switch;

DC12~24V input, reverse polarity protection, overvoltage protection, overcurrent protection;

Swing ARM mounted, compatible with Rittal connector.





Full IP65 and NEMA4 Aluminium Chassis, Fanless design

Full IP65/NEMA4 Standard, water and dust proof, Aluminium Alloy chassis.

Fanless and sealed enclosure,dust proof and no maintenance required during operation.

Optimized for Industrial Panel Applications; Modular design

Digital remote control: VGA, DVI, HDMI and RJ45

Different mounting options as requests





User-defined function buttons

Customized buttons are possible in small batch production








Wide Work Temperature range

Operation Panel are integrated with wide temperature components; system operating temperature supports from -20 up to +60°C, suitable for major industrial applications.









I/O Interface

  • Communication interface:USB2.0 input

Physical

  • Dimensions :480mm x 359mm x 130.5mm
  • Weight:8.24 KG
  • Keyboard tray:Optional
  • Pensile Direction:Optional up or down

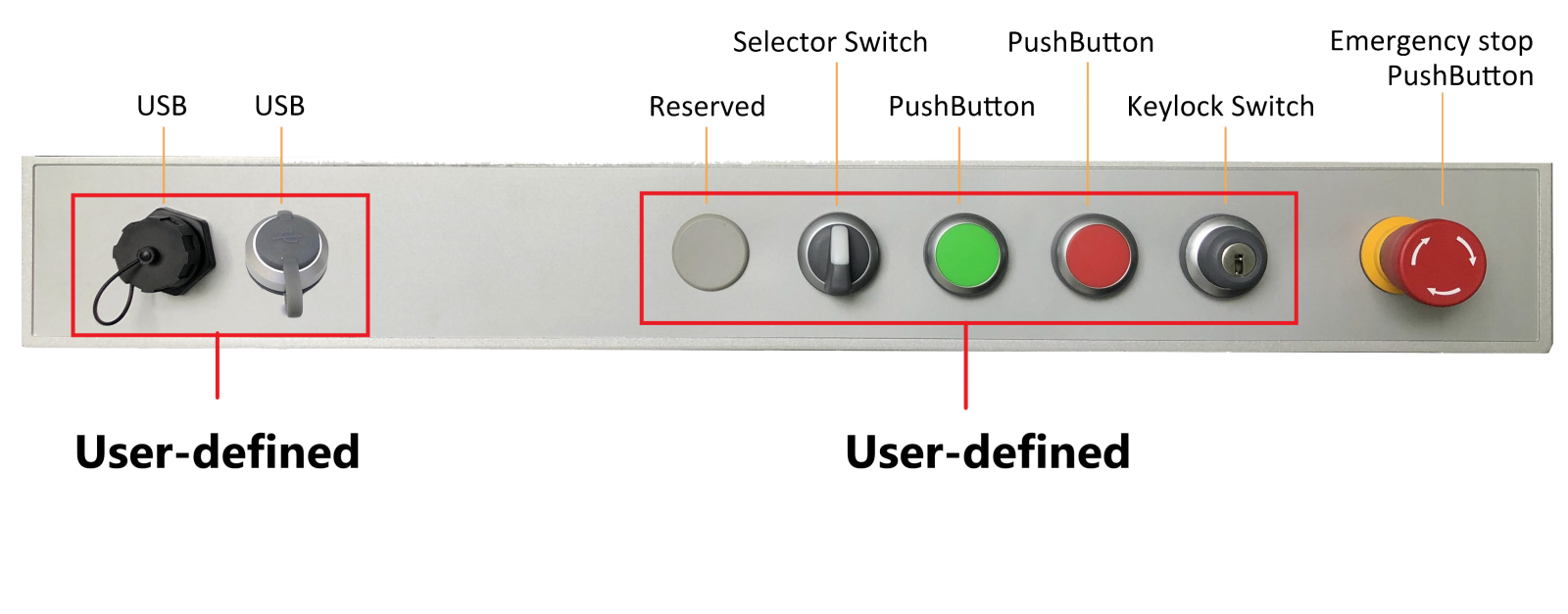

  • Operation Button:Optional item. Nodka standard: USB, rotatable switch, push button (green, red), key switch, emergency stop switch

Power

  • Input Voltage:DC 12-24V support reverse polarity protection, overvoltage protection, overcurrent protection
  • Power Dissipation:15W(Minimum)

LCD

  • LCD Size:18.5" HD TFT
  • Resolution:1366 x 768
  • Colors:16.7MB
  • Active Area :409.8mm x 230.4mm
  • Backlight:LED
  • MTBF:30000hrs
  • Pixel Pitch:0.248 x 0.248
  • Luminance:250cd/m2
  • Contrast Ratio:1000:1
  • Viewing Angle:(L) 85 / (R) 85 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type:Capacitive touch screen
  • Transmittance:> 81%
  • Response Time:< 5ms
  • Surface hardness:Mohs' Number 7H
  • Click life:250g / 100,000,000 times
  • Multi-touch:10 points

Environment

  • Work temperature:-10 ~ 60°C (14~140℉)
  • Storage Temperature:-20 ~ 80℃ (-4 ~ 176℉)
  • Relative Humidity:5~95% (Non-condensation)
  • Vibration:Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock:Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC:CE/FCC Class A
  • Water-proof:IP65 Compliant

Datasheet Download                 Selection guide



Driver Download



Driver Name

Operation system

Download link

IDP59XX Touch Driver

Winodws_7_8_10_32bit

Download



■Ordering Information

Prduct Description

IDP59185-C-L

 18.5"LCD/1366*768/ capacitive touchscreen/DC12V~24V input



■Options ARM Tube

Porduct model Specifications

Keyboard Stand

Aluminum

4460 type ARM Tube

Refer to the following sheet

(If you prefer 5575 type please contact with sales rep)
