TPC6000-A153 | 15" Panel PC

TPC6000-A153 | 15" Panel PC

15 inch fanless Panel PC based on Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U processor

Aluminum-magnesium alloy box,Front panel IP65 with PET film

15'' XGA TFT,Optimum resolution 1024*768, Precision Resistive touch screen

Support Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U

2x Gigabit Ethernet ports, 2x RS-232 COM, 8KV electrostatic protection, 600W TVS surge protection,RS485 support automatic flow control

Wide voltage power supply:DC12~24V.Support reverse polarity protection, overvoltage protection, overcurrent protection

Extend WIFI/3G/4G network/1 x Mini-PCIe slot/1 x EasyBUS slot

Fanless design, VESA Mount, Panel Mount

I/O:VGA / DVI / 2GLAN / 4USB / 2COM



Rugged IP65 and NEMA4 Aluminium Chassis, Fanelss design

Front Panel IP65/NEMA4 Standard, water and dust proof

Fanless and sealed enclosure


5-wire resistive touch screen

5-wire resistive touch, with water, dust, and oil proof; click life is 50 million times

Neutral front panel

Nodka offers neutral front panel design without logo in neutral packag, as well as customized logo and color.

Modular design: optimized for Industrial Panel Applications

Flexible modular design for system box; powerful computing performance for low power consumption

Different mounting options as requests

Easybus design

There is an Easybus extension design, and can be various buses via Mini PCIe







Processor

  • CPU:Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U
  • Frequency:Quad core 2.0GHz / Dual Core 1.8GHz / Quad core 2.0GHz / Dual Core 2.5GHz
  • L3 Cache:1.5MB/2MB/2MB/3MB
  • Chipset:Integrated PCH-LP
  • Memory:1×DDR4-2400MHz,max 16GB / 1×DDR4-2400MHz,max 16GB / 1×DDR3L-1333MHz,max 8GB / 1×DDR3L-1600MHz,max 8GB
  • Storage Medium:1 x 2.5" SATA bay + 1 x mSATA

I/O Interface

  • LAN:2 x Intel i211 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection
  • USB:4 x USB3.0/2.0/1.1
  • COM:2 x RS-232/RS-485 with surge protection, RS485 support automatic flow control
  • Audio:Realtek ACL662 Audio controller

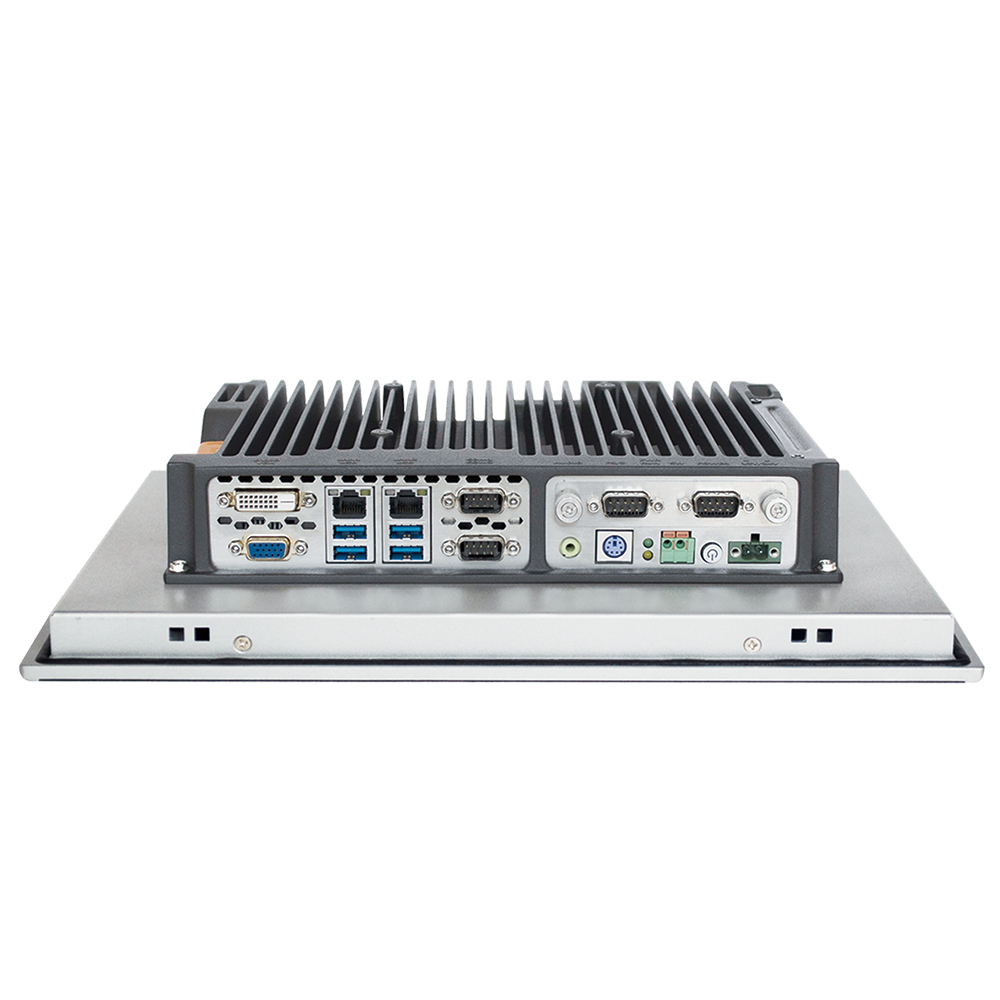

  • Rear I/O:DVI-D / 2 x GLAN / 4 x USB / 2 x COM /2 x PS2

Physical

  • Dimensions :395mm x 313mm x 73mm (15.55" x 12.32" x 2.87")
  • Cut Out Size :376mm x 300mm (14.80" x 11.81")
  • Weight:5.45kg

Operating System

  • OS:Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux, QNX, VXWORKS

Power

  • Input Voltage:12-24VDC ±10% , support reverse polarity protection, overvoltage protection, overcurrent protection
  • Power Dissipation:38.6Watt

LCD

  • LCD Size:15" XGA TFT
  • Resolution:1024 x 768
  • Colors:16.7MB
  • Active Area :304.13mm x 228.10mm (11.97" x 8.98")
  • Backlight:LED
  • MTBF:50000hrs
  • Pixel Pitch:0.297 x 0.297
  • Luminance:350cd/m2
  • Contrast Ratio:700:1
  • Viewing Angle:(L) 80 / (R) 80 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type:Resistive touch screen
  • Resolution:4096 x 4096
  • Transmittance:> 75%
  • Controller interface:USB
  • Driver Support:Windows 7, Windows8, Windows10, Linux
  • Response Time:< 5ms
  • Surface hardness:Mohs' Number 3H
  • Click life:250g / 35,000,000 times
  • Draw life:250g / 5,000,000 times

Environment

  • Work temperature:-20 ~ 60°C (-4~140°F)(Wide temperature SSD); 0 ~ 45°C (32°F~113°F) (General temperature HDD/SSD)
  • Storage Temperature:-30 ~ 80 °C(-22 ~ 176°F)
  • Relative Humidity:5~95% (Non condensation)
  • Vibration:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10G, IEC 60068-2-27, Half-sine wave, 11ms duration
  • EMC:CE/FCC Class B
  • Water-proof:Front panel IP65

Datasheet Download



Driver Download



Driver Name

Operation system

Download link

TPC6000-AXX3 series ME Driver for J1900_E3845

Win10_64bit

Download

TPC6000-AXX3 series ME Driver for 8145U_4205U

Win7_10_32_64bit

Download

TPC6000-AXX3 series ME Driver for 7200U

Win7-10_32-64bit

Download

TPC6000-AXX3 series USB 3.0 Driver

Win7_32-64bit

Download

TPC6000-AXX3 series Audio Driver for Realtek ALC897

Win7-8-8.1-10_32-64bit

Download

TPC6000-AXX3 series LAN Driver for Inter 211-210

WinXP-32bit

Download

TPC6000-AXX3 series LAN Driver for Inter 211-210

Win7-10_32-64bit

Download

TPC6000-AXX3 series LAN Driver for Inter 211-210

Win7-10_32-32bit

Download

TPC6000-AXX3 series Graphics driver for 8145U_4205U

Win7-Win10_32-64bit

Download

TPC6000-AXX3 series Chipset Driver for 7200U

Win7-Win10_32-64bit

Download

TPC6000-AXX3 series Graphics driver for J1900_E3845

Win7-Win10_32-64bit

Download



Ordering Information

Prduct Code Description

TPC6000-A153-T-J6412

15"LCD/ Intel J6412 2.0G Quad Core CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/

Resistive Touch Screen/1024*768 /DC12V-24V input/Two-year warranty

TPC6000-A153-T-J1900

15"LCD/ Intel J1900 2.0G Quad Core CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/

Resistive Touch Screen/ 1024*768 /DC12V-24V input/Two-year warranty

TPC6000-A153-T-4205U

15"LCD/ Intel 4205U Dual Core 1.8GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/

Resistive Touch Screen/ 1024*768 /DC12V-24V input /Two-year warranty

TPC6000-A153-T-WL8145U

15"LCD/ Intel 4205U Dual Core 1.8GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/

Resistive Touch Screen/1024*768/DC12V-24V input/Two-year warranty

TPC6000-A153-T-SL7200U

15"LCD/Intel 8145U Dual Core 2.1 GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/

Resistive Touch Screen/1024*768/DC12V-24V input/Two-year warranty

■Optional Equipment

Option

Adapter 12V/60W 2 pin Phoenix terminal

Option

Chinese standard Power Line1.8m

Standard

Touch Pen

Standard

8*Hooks

Standard

ManufacturerCertificate

Standard

Warranty Card

Standard
