eLINK-200 | Remote Data Transmitter box
DVI-D, USB, RS232 remote data transmission solutions
- DVI-D, USB, RS232
- remote data transmission solutions
- High performance decoding chip
- Ultra long distance transmission，up to 100 meters
- 1920×1080 HD display
eLINK-200 | Remote Data Transmitter box

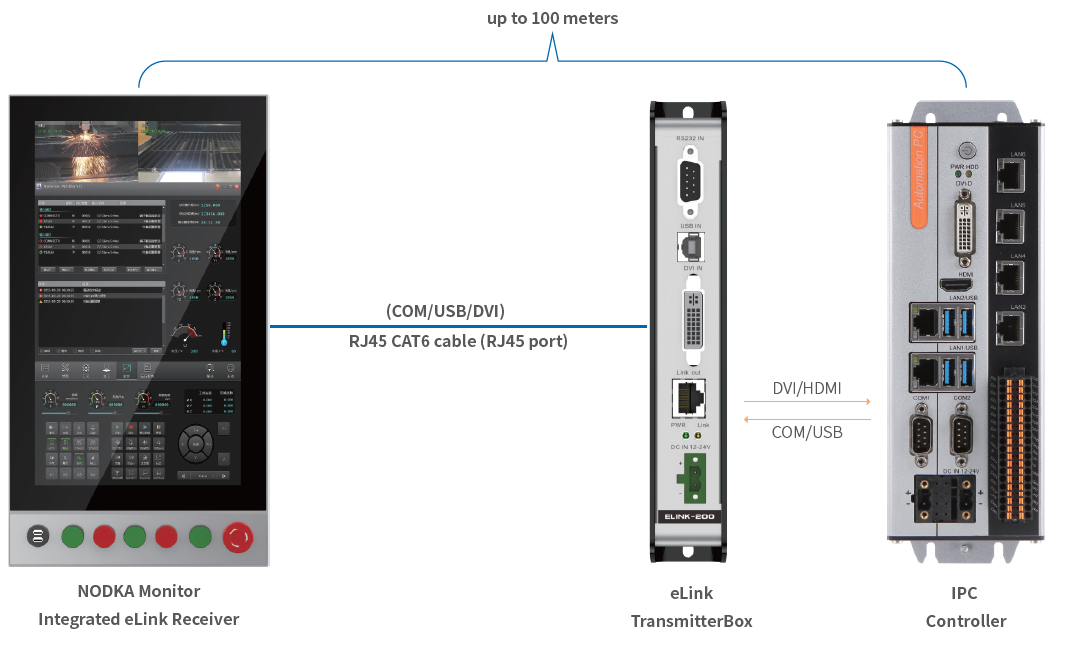

eLink-200 Remote Data Transmission solution
- Designed for long-distance data transmission up to 100 meters
- Transmit video signal, USB signal and serial port signal at the same time
I/O Interface
- USB：USB2.0
Display
- DVI：Support up to 1920 x 1080@60Hz
Physical
- Dimensions ：200mm x 107mm x 32mm
- Box Structure：Aluminum-magnesium alloy BOX with fan embedded to assist cooling, Wall- mounted
Mounting
- Mount：Desktop，Wall-mounted
Operating System
- Microsoft Windows：Windows 10 IoT
- Linux：Ubuntu
Power
- Input Voltage：DC 12-24V support reverse polarity protection, overvoltage protection, overcurrent protection
- Consumption：maximum power consumption 40W
Environment
- Work temperature：-10 ~ 60°C (14~140℉)
- Storage Temperature：-20 ~ 80℃ (-4 ~ 176℉)
- Relative Humidity：5~95% (Non-condensing)
- Vibration：IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
- Shock：IEC 60068-2-64, Half-sine wave, 11ms duration
- EMC：CE/FCC Class A
eLINK-200
BOX /0.5m USB cable / 0.5m DVI business to business cable
