C1562 | 15.6" Touch Monitor (Capacitive)
15.6 inch capacitive touch screen monitor
-
15.6＂TFT LCD,1366×768
-

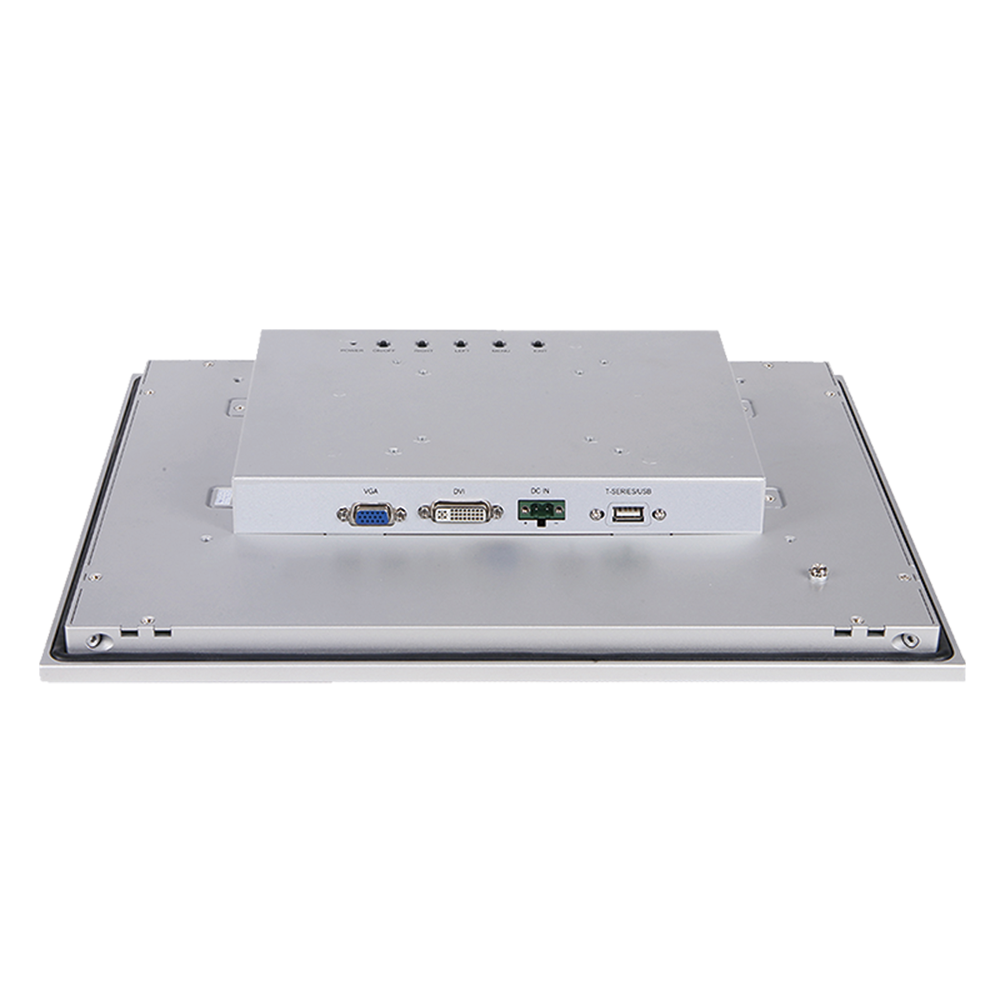

Support VGA/DVI signal input
-
Capacitive touch screen,support COM/USB
-
Aluminum panels,support panel/VESA mounting
-
DC 12V-24V
C1562 | 15.6" Touch Monitor (Capacitive)
|
Rugged IP65 and NEMA4 Aluminium Chassis, Fanelss design Front Panel IP65/NEMA4 Standard, water and dust proof
Fanless and sealed enclosure
|
 |
 |
Excellent touch accuracy High resolution and response speed; Capacitance up to 10 points touch; Click life exceeds 10 million times Mohs hardness 7H; Transmittance> 75 Neutral front panel Nodka offers neutral front panel design without logo in neutral packag, as well as customized logo printing |
|
Flexible modular design Product is with modular design structure, easy for maintenance and upgrade Different mounting options as requests |
 |
Physical
- Dimensions ：405mm×258mm×47mm (15.94"×10.16"×1.85")
- Cut Out Size ：387mm×240mm (15.24"×9.45")
- Box Structure：Front panel: aluminum-magnesium alloy, anodized coating; back cover: SGCC, Ground isolation protection
Mounting
- Mount：Embedded, wall mounted, desktop and VESA mounting
Power
- Power Dissipation：12W
- Power Supply：DC 12V - DC 24V
LCD
- LCD Size：15.6"TFT
- Resolution：1366×768
- Colors：16.7MB
- Active Area ：344.232mm×193.536mm (13.55' x 7.62")
- Backlight：LED
- MTBF：50000hrs
- Pixel Pitch：0.252×0.252
- Luminance：400cd/m2
- Contrast Ratio：800:1
- Viewing Angle：(L) 85 / (R) 85 / (T) 50 / (B) 80
Touch Screen
- Touchscreen Type：Multi-point capacitive touch screen
- Transmittance：More than 87%
- Controller interface：USB
- Driver Support：Windows XP, Windows 7, Winows8, Windows 10, Linux
- Surface hardness：Mohs' Number 7H
- Multi-touch：10 points (windows system)
Environment
- Work temperature：-20 ~ 60° C (-4~140℉)
- Storage Temperature：-30 ~ 80℃ (-22 ~ 176℉)
- Relative Humidity： 5~95% (Non condensation)
- Vibration：SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
- Shock：SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
- EMC：CE/FCC Class A
- Water-proof：Front panel IP65
Datasheet Download
Driver Download
|
Driver Name |
Operation system |
Download link |
|
PANEL5000-CXX2 series Touch Driver |
Winodws_7_8_10_32bit |
PANEL5000-C1562-L: 15.6"TFT LCD/1366*768/Capacitive Touch Screen/1*VGA/1*DVI/DC12-24V input
