TPC6000-C104-L |10.4" Panel PC LGA1151

TPC6000-C104-L |10.4" Panel PC LGA1151

10.4 inch capacitive Panel PC based on Intel® 6th - 11th Gen. Core™i3 i5 i7 processor

Aluminum panel with IP65 compliant;

10.4" TFT, Optimum resolution 1024 x 768, Project Capacitive touch screen;

Support Intel® the 6th - 11th Gen. Core™i3/i5/i7, Pentium, Celeron LGA1151 socket CPU;

3 x Gigabit Ethernet ports;

4 x RS-232 / RS-485 Interface with surge prot ection, RS485 support automatic flow control;

Wide voltage DC12~24V input, reverse polarity protection, overvoltage protection, overcurrent protection;

Extend WIFI/3G/4G network from Mini-PCIe slot;

I/O: HDMI/ 3GLAN /6USB / 4COM






Rugged IP65 and NEMA4 Aluminium Chassis, modular design

Front Panel IP65/NEMA4 Standard, water and dust proof

Modular design, compatible with resistive touch screen module

Excellent touch accuracy

High resolution and response speed; Capacitance up to 10 points touch;

Neutral front panel

Nodka offers neutral front panel design without logo in neutral package, accept customized logo printing service





8 Digital Input and 8 Digital Output

8DI+8DO, Wet contact input(24V), OC gate output(24V 300mA)

Working well with INtime, VxWorks, RTX, EC-Win and Linux ect.., Microsecond-grade real-time vibration, the most stable hardware platform for Motion Control, Robot Control, and PLC Control applications.









Dip-switch for RS232/RS485

At one side of the box, there is a dip-switch design for easily setting RS232 or RS485.

RS232/485 Interface with surge protection, RS485 support automatic flow control.




Modular design: optimized for Industrial Panel Applications

Flexible modular design for system box,powerful computing performance.

Different mounting options as requests

Support panel mounted and VESA mounted, option VESA stand.









Processor

  • CPU:Intel® Core™ 6th - 11th Gen. Core™i7/i5/i3 , Pentium® and Celeron® LGA1151 type CPU. Max.65W TDP
  • Chipset:H110
  • Memory:DDR4-2400MHz,MAX support 32GB
  • Storage Medium:1 x M.2 (M Key 2280 PCIe Gen3x4 Lane), 1 x mSATA
  • BIOS:AMI UEFI 64Mbit

I/O Interface

  • LAN:3 x Intel 10/100/1000Mbps controller
  • USB:4 x USB3.0 / 2 x USB2.0
  • COM:4 x RS-232 / RS-485 Interface with surge protection, RS485 support automatic flow control
  • DI:8DI+8DO,Wet contact input(24V), OC gate output(24V 300mA)
  • DO:8DI+8DO,Wet contact input(24V), OC gate output(24V 300mA)

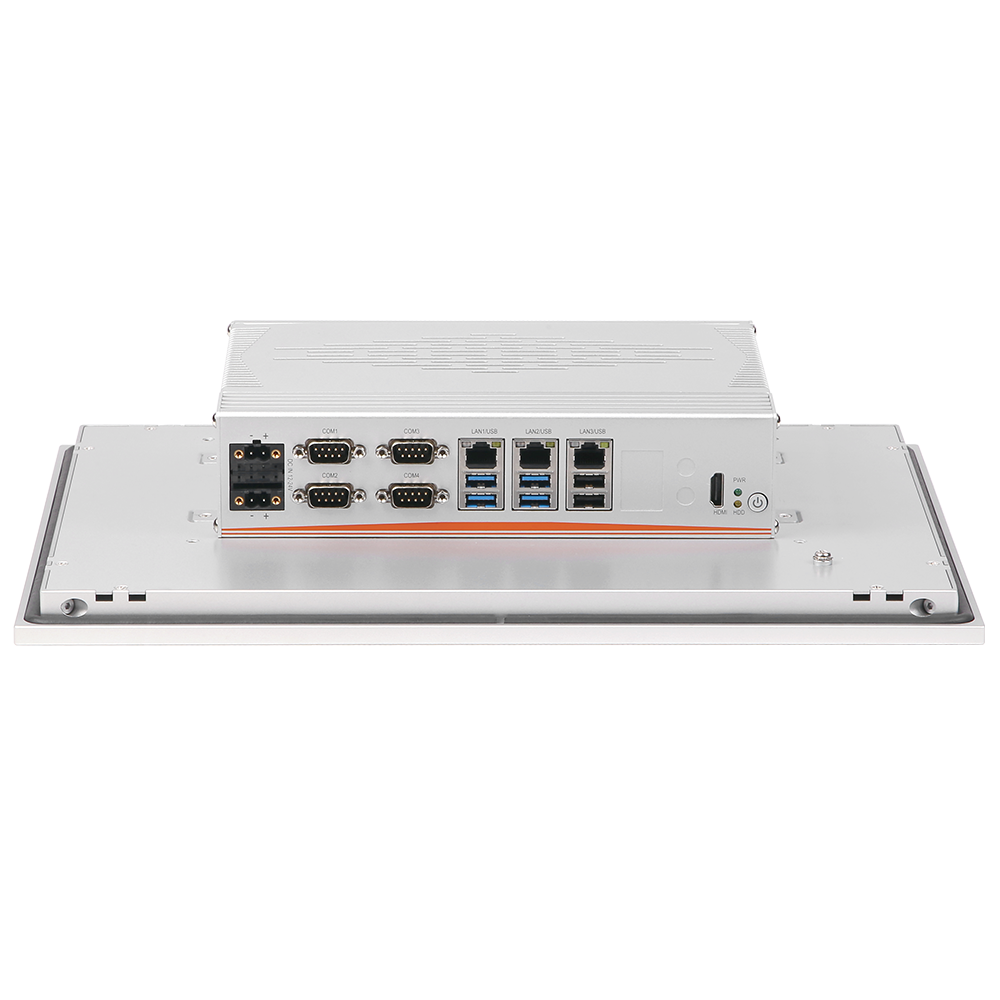

  • Rear I/O:3 x GLAN / 6 x USB / 4 x COM /1x HDMI

Display

  • HDMI:HDMI 1.2

Physical

  • Dimensions :298.5mm×238.5mm×74mm (11.75"×9.38"×2.91")
  • Cut Out Size :280.5mm×220.5mm (11.04"×8.68")
  • Weight:3.4kg
  • Box color:Silver
  • Cooling system:Fan

Operating System

  • OS:Support Windows 7, Windows 7 Embedded, Windows8, Windows10, Ubuntu, VXWORKS, QNX

Power

  • Input Voltage:12-24V DC ±10% , Support reverse connection protection, over voltage protection, over current
  • Consumption:25Watt

LCD

  • LCD Size:10.4" XGA TFT
  • Resolution:1024×768
  • Colors:16.7MB
  • Active Area :211.2mm×158.4mm (8.31"×6.24")
  • Backlight:LED
  • MTBF:30000hrs
  • Pixel Pitch:0.206×0.206
  • Luminance:350cd/m²
  • Contrast Ratio:900:1
  • Viewing Angle:(L) 75 / (R) 75 / (T) 75 / (B) 75

Touch Screen

  • Touchscreen Type:Multi-point capacitive touch screen
  • Transmittance:≥ 87%
  • Controller interface:USB
  • Driver Support:Windows 7, Windows8, Windows10, Linux
  • Response Time:< 5 ms
  • Surface hardness:Mohs' 7H
  • Click life:250g / 100,000,000 times
  • Multi-touch:10 points (windows system)

Environment

  • Work temperature:0 ~ 50°C
  • Storage Temperature:-30 ~ 80°C (-22~176°F)
  • Relative Humidity:5 ~ 95% RH@40°C (Non-condensation)
  • Vibration:Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock:Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC:CE/FCC Class B
  • Water-proof:Front panel IP65

Expansion Slot

  • MiniPCIe:1×Mini-PCIe slot, extensible 3G, WIFI wireless card

Datasheet Download                          Usermanual Download





Driver Download



Driver Name

Operation system

Download link

TPC6000-CXX4 series Chipset Driver for H110

Win7_10_32-64bit

Download

TPC6000-CXX4 series Audio Driver

Win7_8_8.1_10_32-64bit

Download

TPC6000-CXX4 series LAN driver

Win7_10_32-64bit

Download

TPC6000-CXX4 series USB3.0 Driver

Win7_32_64bit

Download

TPC6000-CXX4 series Graph Driver

Win7_32_64bit

Download



IO Driver Download

■Ordering Information

Prduct Code Description

TPC6000-C104-LH

10.4"LCD,1024*768,4 x COM(RS232/485),3 x GLAN,6 x USB,8DIO,DC12~24V

■Optional Equipment

Porduct model

Specifications

CPU

Support 6th/7th/8th generation Intel® Core™ i7/i5/i3 LGA socket type processors

Intel® Core™ i3-6100, Dual Core, 3.7GHz, 3MB Cache

Intel® Core™ i3-7100, Dual Core, 3.9GHz, 3MB Cache

Intel® Core™ i3-8100, Quad Core, 3.6GHz, 6MB Cache

Intel® Core™ i5-6400, Quad Core, 2.7GHz, 6MB Cache

Intel® Core™ i5-6500, Quad Core, 3.2GHz, 6MB Cache

Intel® Core™ i5-6500T, Quad Core, 2.5GHz, 6MB Cache

Intel® Core™ i5-8400, Six Cores, 2.8GHz, 9MB Cache

Intel® Core™ i7-6700T, Quad Core, 2.8GHz, 8MB Cache

Intel® Core™ i7-8700, Six Cores, 3.2GHz, 12MB Cache

Please contact sales to check other request.

Memory

DDR4 4G/8G/16G/32G

Storage

Mini SATA SSD64G/128G/256G/512G

2010300008

120Watt Adapter (Input: 100-240V~50-60Hz 2.0 MAX, Output: +12V—10A)

2030100012

Option EU,US,UK…

5040200002

7260 series (mini PCIe)

4G module

(Quectel EC20,EC25,EG25.. )
