Rugged IP65 and NEMA4 Aluminium Chassis, Fanelss design
Front Panel IP65/NEMA4 Standard, water and dust proof
Fanless and sealed enclosure
|
 |
|
 |
5-wire resistive touch screen
5-wire resistive touch, with water, dust, and oil proof; click life is 50 million times
Neutral front panel
Nodka offers neutral front panel design without logo in neutral packag, as well as customized logo and color.
|
|
Modular design: optimized for Industrial Panel Applications
Flexible modular design for system box; powerful computing performance for low power consumption
Different mounting options as requests
|
 |
 |
Easybus design
There is an Easybus extension design, and can be various buses via Mini PCIe
|
Processor
- CPU：Intel® Celeron® J6412 / J1900 / Core™ i5 7200U
- Frequency：Quad core 2.0GHz / Dual Core 1.8GHz / Quad core 2.0GHz / Dual Core 2.5GHz
- L3 Cache：1.5MB/2MB/2MB/3MB
- Chipset：Integrated PCH-LP
- Memory：1×DDR4-2400MHz，max 16GB / 1×DDR4-2400MHz，max 16GB / 1×DDR3L-1333MHz，max 8GB / 1×DDR3L-1600MHz，max 8GB
- Storage Medium：1 x 2.5" SATA bay + 1 x mSATA
I/O Interface
- LAN：2 x Intel i211 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection
- USB：4 x USB3.0/2.0/1.1
- COM：2 x RS-232 / RS-485 with surge protection,RS485 support automatic flow control
- Audio：Realtek ACL662 Audio controller

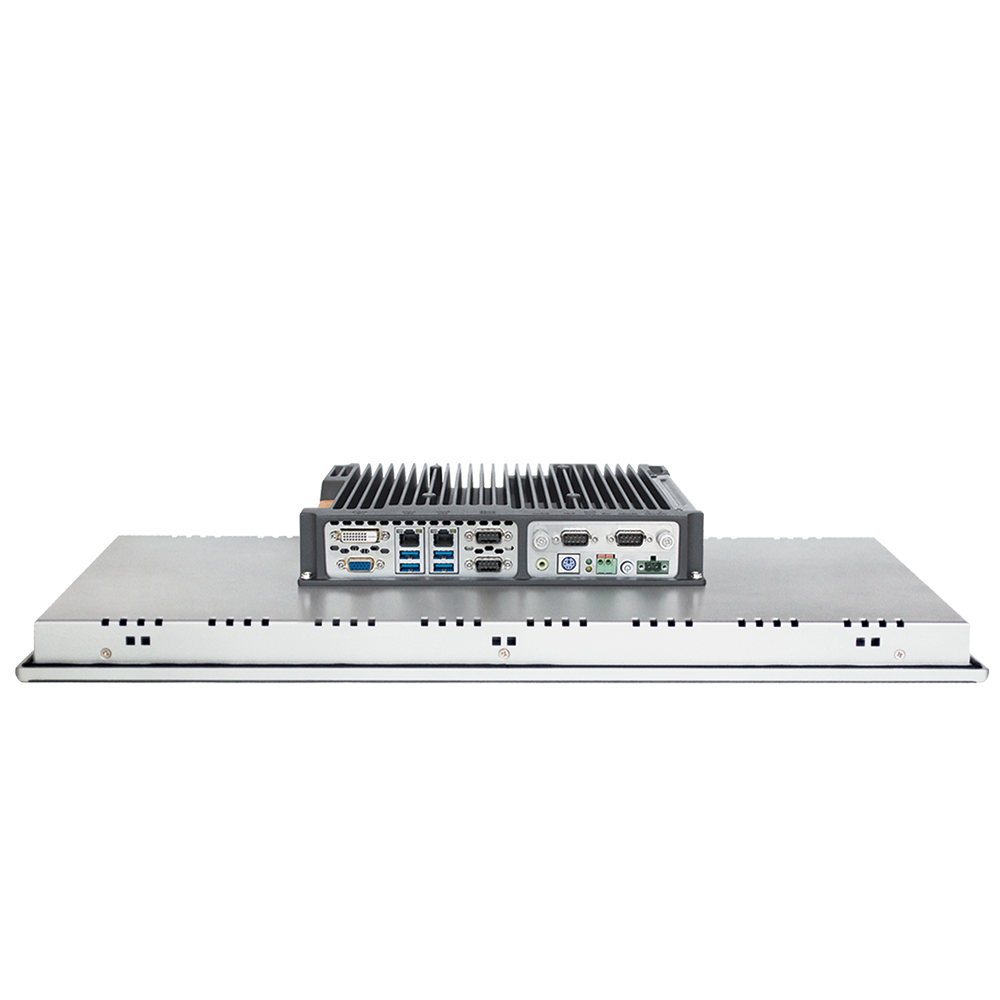

- Rear I/O：DVI-D / 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2
Physical
- Dimensions ：550mm x342mm x 79mm (21.65" x 13.46" x3.11")
- Cut Out Size ：533mm x 325mm (20.98" x 12.80")
Operating System
- OS：Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux, QNX, VXWORKS
Power
- Input Voltage：12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection
- Power Dissipation：48W
LCD
- LCD Size：21.5" Full HD TFT
- Resolution：1920 x 1080
- Colors：16.7MB
- Active Area ：476.64mm x 268.11mm (18.77"x 10.56")
- Backlight：WLED
- MTBF：50000hrs
- Pixel Pitch：0.248 x 0.248
- Luminance：250cd/m2
- Contrast Ratio：1000:1
- Viewing Angle：(L) 89 / (R) 89 / (T) 89 / (B) 89
Touch Screen
- Touchscreen Type：Resistive touch screen
- Resolution：4096 x 4096
- Transmittance：> 85%
- Controller interface：USB
- Driver Support：Windows 7, Windows8, Windows10, Linux
- Response Time：< 5ms
- Surface hardness：Mohs' Number 3H
- Click life：250g / 35,000,000 times
- Draw life：250g / 5,000,000 times
Environment
- Work temperature：0 ~ 45°C (32~113°F); 0 ~ 45°C (32~113°F) (General temperature HDD/SSD)
- Storage Temperature：-20 ~ 60°C (-4 ~ 140°F)
- Relative Humidity：5~95% (Non condensation)
- Vibration：SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
- Shock：SSD applied: 10 G, IEC 60068-2-27, Half-sine wave, 11ms duration
- EMC：CE/FCC Class B
- Water-proof：Front panel IP65
Datasheet Download User Manual
Driver Download
|
Driver Name
|
Operation system
|
Download link
|
|
TPC6000-AXX3 series Driver for J1900
|
Win10_64bit
|
Download
|
|
TPC6000-AXX3 series Driver for J6412
|
Win10_64bit
|
Download
|
|
TPC6000-AXX3 series Driver for 7200U
|
Win7_10_32_64bit
|
Download
|
|
TPC6000-AXX3 series Audio Driver
|
Win7_8_8.1_10_32-64bit
|
Download
|
|
TPC6000-AXX3 series LAN driver
|
Win7_10_32-64bit
|
Download
|
|
TPC6000-AXX3 series USB3.0 Driver
|
Win7_32_64bit
|
Download
|
|
TPC6000-AXX3 series Graph Driver
|
Win7_8_10_11_32_64bit
|
Download
|
|
TPC6000-AXX3 series Touch Driver
|
Win7_8_10_11_32_64bit
|
Download
|
■Ordering Information
|
Prduct Code |
Description |
|
TPC6000-A2153-T-J6412
|
21.5" LCD/ Intel J6412 2.0G Quad Core CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/Resistive Touch Screen/1920*1080/DC12V-24V input/Two-year warranty
|
|
TPC6000-A2153-T-J1900
|
21.5" LCD/ Intel J1900 2.0G Quad Core CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/Resistive Touch Screen/1920*1080/DC12V-24V input/Two-year warranty
|
|
TPC6000-A2153-T-4205U
|
21.5" LCD/ Intel 4205U Dual Core 1.8GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/Resistive Touch Screen/ 1920*1080/DC12V-24V input /Two-year warranty
|
|
TPC6000-A2153-T-WL8145U
|
21.5"LCD/ Intel 4205U Dual Core 1.8GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/Resistive Touch Screen/1920*1080/DC12V-24V input/Two-year warranty
|
|
TPC6000-A2153-T-SL7200U
|
21.5"LCD/Intel 8145U Dual Core 2.1 GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/Resistive Touch Screen/1920*1080/DC12V-24V input/Two-year warranty
|
■Optional Equipment
|
Option
|
Adapter 12V/60W 2 pin Phoenix terminal
|
|
Option
|
Chinese standard Power Line1.8m
|
|
Standard
|
Touch Pen
|
|
Standard
|
8*Hooks
|
|
Standard |
ManufacturerCertificate
|
|
Standard |
Warranty Card
|
|
Standard |
