Operation Panel

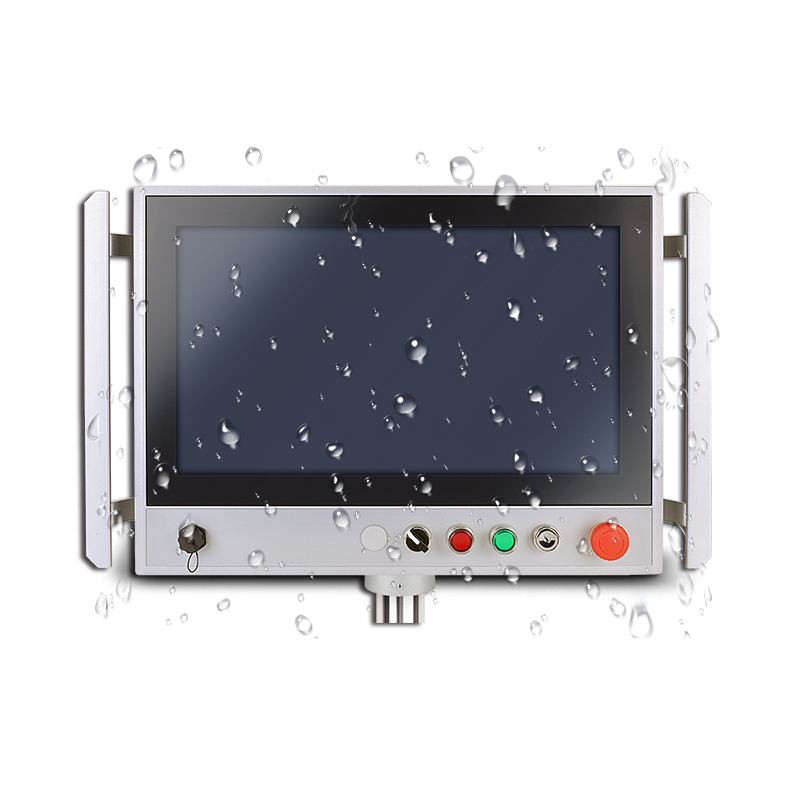

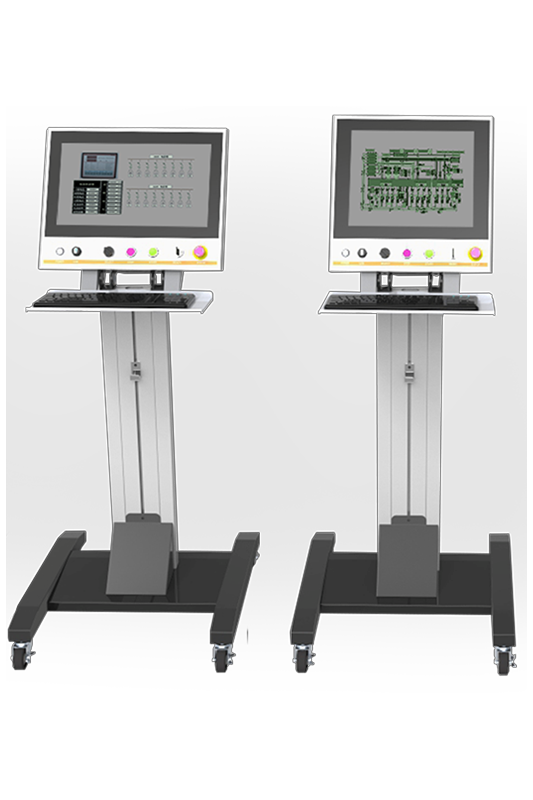

NODKA Industrial Operation Panel, support Rittal® CP40 Swing ARM, has control box with industrial computer system and display. The latest version of Operation Panel is highly-integrated and stylish design with user-defined function RAFI® BUTTON for selected switches. Those key switches and an integrated E-stop button provide exceptional user-friendly functional experience during operation. It can be widely used in all kinds of machine tools, such as automobile manufacturing, petrochemical, food, pharmaceutical machinery and other automatic equipment, testing equipment and human-computer interaction equipment.

Industrial Operation Panels are available either with a projected capacitive touch screen monitor (IDP59 series) or with additional PC system (ICP69 series).

ICP69 series support NODKA COMLAC INSIDE design. Interfaces has option 2 Intel gigabit RJ45 ports, 4 USB and 2 RS232/485 ports.

Screen size: 15", 18.5", 19", and 21.5

CPU: Intel® Celeron™ J1900/ Core i5 7200U processor







Full IP65 waterproof

User-defined RAFI® BUTTON

  Modular design



Nodka's industrial Operation Panels are custom-made with neutral from panel and multiple expansion slots to fit with custom needs in industrial and IOT applications.



Products:
TouchScreen Type
Capacitive touch
Resistive Touch
Bezel free Resistive touch
Screen Size
21.5”
19”
18.5”
17”
15”
12.1”
10.4”
8”
15.6"
10.1"
12.5"
27"
CPU platform
Intel® Core™ i5-7200U
Intel® Celeron™ J1900
Intel® Core™ i3-8145U
Intel® Celeron™4205U
Intel® 6/7/8th Gen. Core™i3 i5 i7/Celeron/Pentium LGA1151
Intel® 4th Gen. Core™i3 i5 i7/Celeron/Pentium LGA1150
Intel® Celeron® J6412
Intel® Celeron® J3455
Intel® Core™ i3-1115G4
Intel® Core™ i5-1135G7
Intel® Core™ 10/11th Gen. i9/ i7/i5/i3 LGA1200 type CPU
Rockchip RK 3399
Operation Panel Type
Panel PC
Monitor
