Real-time Automation Controller - NP Series



Suitable for use in utility substations or industrial control and automation systems, Nodka's high performance control cabinet real-time Automation controller, NP series, provides complete and flexible system control with integrated security, seamless configuration and reliability.

The system is designed by modular concept, and support from Intel® ATOM low power consumption processors to Intel®Core™ 6th/7th/8th /9thgeneration i3, i5, i7 desktop high performance processors with more than 10 years life cycle.

Currently two product types are available: NP-6111 and NP-6122. Both have 5 types of extensions: H1, JH2, JH3, JH4, L2


To improve the realtime performance, Nodka team has cooperated with Tenasys to help customers optimized all of the BIOS settings in the factory, which can reduce lots of the effort from the customer’s side.



Built for industrial applications

Rugged Aluminium Chassis, ensureexcellent heat dissipation

Fast maintenance design for disk, Fanless design

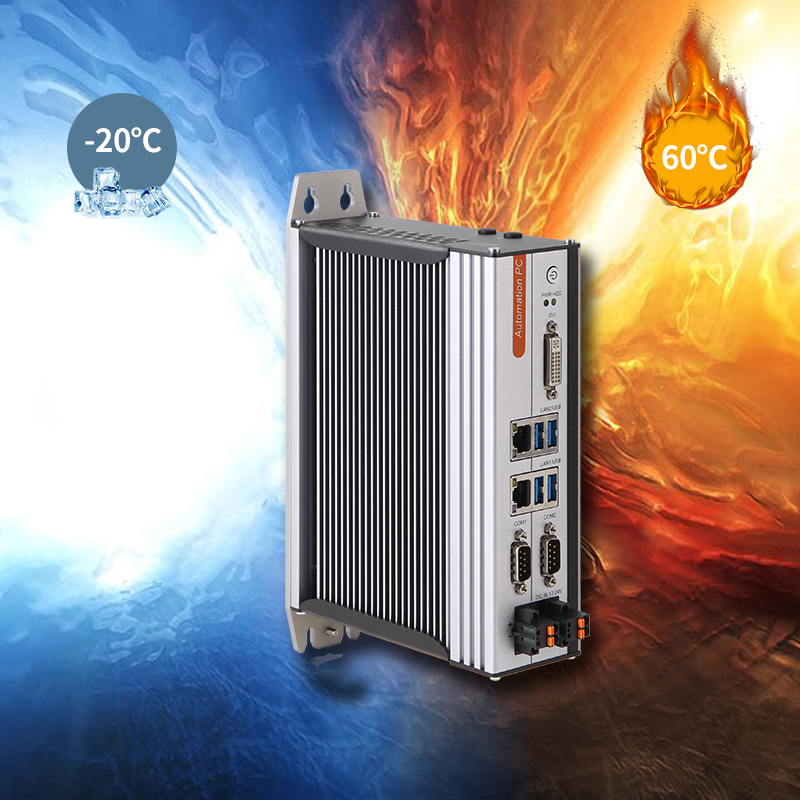

Wide work tempertature: -20 up to +60°C







Compact size

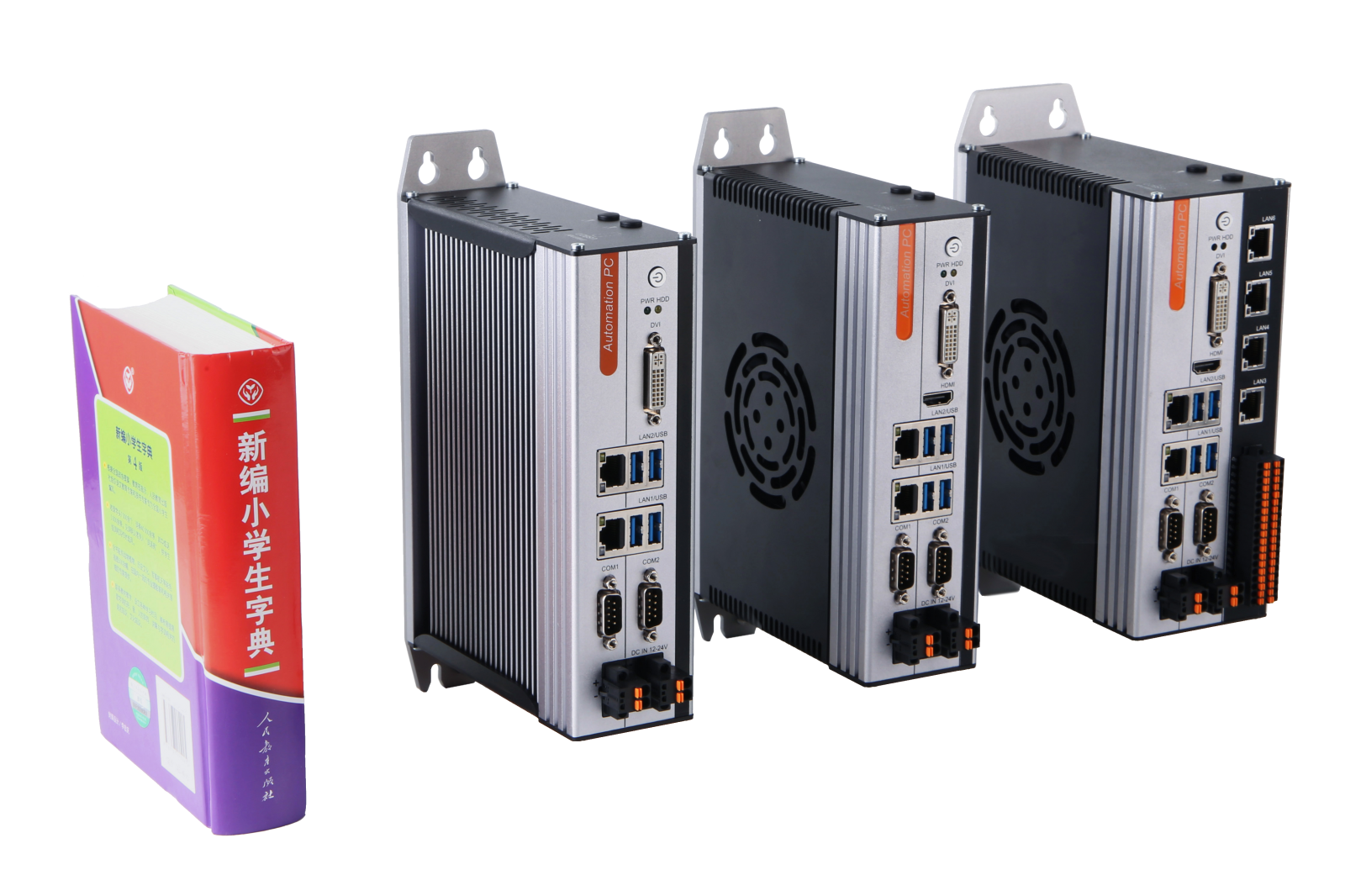

Wall-mounted, with the book similar size (200mm x 154.5mm x 57.6mm)

10+ years life cycle





Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

Customized Logo




Nodka's Real-time Automation Controllers, NP series, are custom-made with multiple expansion slots to fit with custom needs in industrial and IOT applications.



Products:
CPU platform
Intel® Core™ i5-7200U
Intel® Celeron™ J1900
Intel® Core™ i3-8145U
Intel® Celeron™4205U
Intel® 6/7/8th Gen. Core™i3 i5 i7/Celeron/Pentium LGA1151
Intel® 4th Gen. Core™i3 i5 i7/Celeron/Pentium LGA1150
Intel® Celeron® J6412
Intel® Celeron® J3455
Intel® Core™ i3-1115G4
Intel® 10/11th Gen.
Intel® Core™ i5-1135G7
Intel® 8/9th Gen.
Rockchip RK 3399
