iTPC-H1252 | 12.5" Panel PC

12.5 inch TFT fanless capacitive Panel PC based on Intel®Celeron™ J3455, option Celeron™ J1900, i5-7200U processor

Aluminum-magnesium alloy box, Front panel IP65

12.5" TFT, Optimum resolution 1366 x 768, capacitive touch screen

Support Intel® Celeron J3455 / J1900 / i5-7200U

2 x RS-232, optional RS-485, interface with surge protection

Fanless design, VESA Mount, Panel Mount

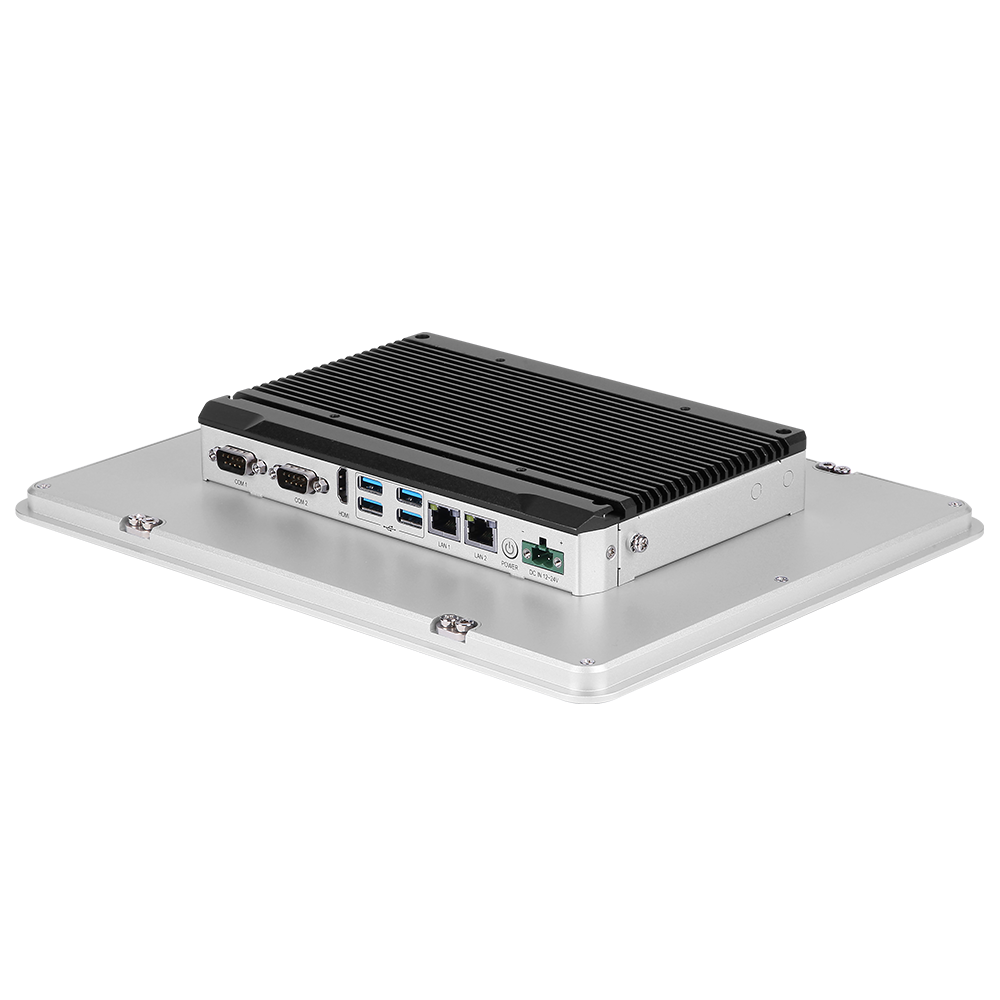

I/O: 2 x GLAN / 4 x USB / 2 x COM / DC-in / HDMI

CONTACT ME

Product Highlight Specifications File Download Order Information

Rugged IP65 and NEMA4 Aluminium Chassis, Fanelss design

Front Panel IP65/NEMA4 Standard, water and dust proof

Fanless and sealed enclosure

Cost-effective Panel PC for industrial use

Excellent touch accuracy

High resolution and response speed; Capacitance up to 10 points touch; Click life exceeds 10 million times

Mohs hardness 7H; Transmittance> 87

Neutral front panel

Nodka offers neutral front panel design without logo in neutral packag, as well as customized logo printing

Modular design: optimized for Industrial Panel Applications

Flexible modular design for system box; powerful computing performance for low power consumption

Different mounting options as requests

Processor

CPU：Intel® Celeron J3455 / J1900 / i5-7200U
Frequency：Quad Core 2.3GHz/ Quad Core 2GHz / Dual Core 2.5 GHz
L3 Cache：2MB/2MB/3MB
Chipset：Intel Apollo Lake/Bay Trail/Integrated PCH-LP
Memory：Support DDR3L 1333 MHz, 1 * 240-pin SO-DIMM Slot, Up to 8GB
Storage Medium：1 x MSATA

I/O Interface

LAN：LAN1/2:Intel i211 or i225 Gbe LAN controller, RJ-45
USB：1 x USB3.0，3x USB2.0
COM：2 x RS-232, optional RS-485, interface with surge protection

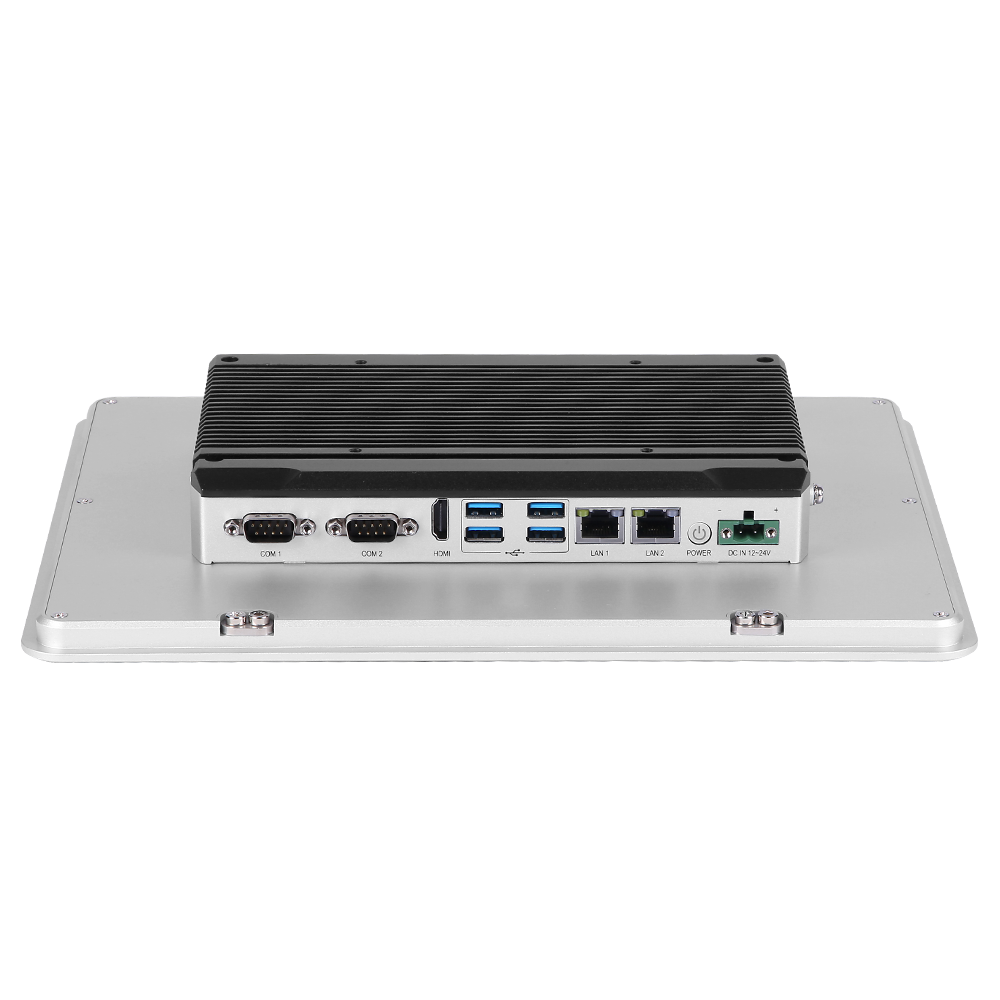

Rear I/O：2 x GLAN / 4 x USB / 2 x COM / DC-in / HDMI

Physical

Dimensions ：336mm x 222mm x 45mm (13.23" x 8.74" x 1.77")
Cut Out Size ：328mm x 214mm (12.91" x 8.43")
Weight：2.46kg

Operating System

OS：Windows 7, Windows 8, Windows 10, Linux

Power

Input Voltage：12-24VDC
Power Dissipation：32.9Watt MAX

LCD

LCD Size：12.5" TFT
Resolution：1366 x 768
Colors：16.7MB
Active Area ：275.59mm x 154.94mm (10.85" x 6.10")
Backlight：LED
MTBF：25000hrs
Pixel Pitch：0.218 x 0.218
Luminance：300cd/m2
Contrast Ratio：800:1
Viewing Angle：(L) 85 / (R) 85 / (T) 85 / (B) 85

Touch Screen

Touchscreen Type：Multi-point capacitive touch screen
Transmittance：> 87%
Controller interface：USB
Driver Support：Windows 7, Windows8, Windows10, Linux
Surface hardness：Mohs' Number 7H
Multi-touch：10 points (windows system)

Environment

Work temperature：-10 ~ 50°C (-14~122°F) (Wide temperature SSD)
Storage Temperature： -20 ~ 70°C (-4 ~ 158°F)
Relative Humidity：10~95% RH@40°C, Non condensing
Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
Shock：Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
EMC：CE/FCC Class A
Water-proof：Front panel IP65

Expansion Slot

MiniPCIe：1 * MINI- PCIe slot, extended to 3G and wifi card

Datasheet Download

Driver Download

Driver Name	Operation system	Download link
iTPC series ME Driver for J1900_E3845	Win7_10_32_64bit	Download
iTPC series ME Driver for J3355	Win10_64bit	Download
iTPC series ME Driver for J3455	Win10_64bit	Download
iTPC series USB 3.0 Driver	Win7_32-64bit	Download
iTPC series Audio Driver for Realtek ALC897	Win7-8-8.1-10_32-64bit	Download
iTPC series LAN Driver for Inter 211-210	WinXP-32bit	Download
iTPC series LAN Driver for Inter 211-210	Win7-10_32-64bit	Download
iTPC series LAN Driver for Inter 211-210	Win7-10_32-32bit	Download
iTPC series Graphics driver for Inter 630	Win10_64bit	Download
iTPC series Graphics driver for Inter 530	Win10_32bit	Download
iTPC series Graphics driver for Inter 530	Win8_64bit	Download
iTPC series Graphics driver for Inter 530	Win7_64bit	Download
iTPC series Graphics driver for Inter 530	Win7-8-10_64bit	Download
iTPC series Chipset driver for 8145U_4205U	Win7-Win10_32-64bit	Download
iTPC series Chipset Driver for 7200U	Win7-Win10_32-64bit	Download
iTPC series Chipset driver for J1900_E3845	Win7-Win10_32-64bit	Download
iTPC series Chipset driver for J3355_J3455	Win10_32-64bit	Download

■Ordering Information

Prduct Code	Description
iTPC-H1252-J3455	12.5"LCD/Intel J3455 2.3GHz Quad core CPU / 2RS232 (option RS48/ 2LAN /1USB3.0/3USB2.0/ Capacitive Touch/ Resolution 1366*768/DC12V-24V input
iTPC-H1252-J1900	12.5"LCD/Intel J1900 2.0GHz Quad core CPU / 2RS232 (option RS48/ 2LAN /1USB3.0/3USB2.0/ Capacitive Touch/ Resolution 1366*768/DC12V-24V input
iTPC-H1252-SL7200U	12.5"LCD/Intel I5-7200U 2.5GHz Dual core CPU/ 2RS232 (option RS48/ 2LAN /1USB3.0/3USB2.0/ Capacitive Touch/ Resolution 1366*768/DC12V-24V input

■Optional Equipment

Porduct model	Specifications
Adapter	Input: 100~240V~50/60Hz 1.7A Output:+12.0V—5A,60Watt
Memory	DDR3 2G/4G/8G
Storage	Mini SATA SSD64G/128G/256G/512G…
5040200001	WIFI (7260 series) with antenna
5040100001	4G/3G Module(EC20, EC25, EG25) (via mini PCIE)
