eBOX-3660 | Fanelss Box PC

eBOX-3660 | Fanelss Box PC

Fanless industrail computer, Intel 3855U/J1900 high-performance processor DIN-rail
  • Aluminum alloy BOX

  • Intel® J1900/Celeron™ 3855U processor

  • DDR3L-1666MHz memory, up to 8GB

  • 2x Intel i210 Gbe LAN controller

  • Support Din-rail mounted

  • Support Win 7, Win7 Embedded, Win 8, Win10, Linux

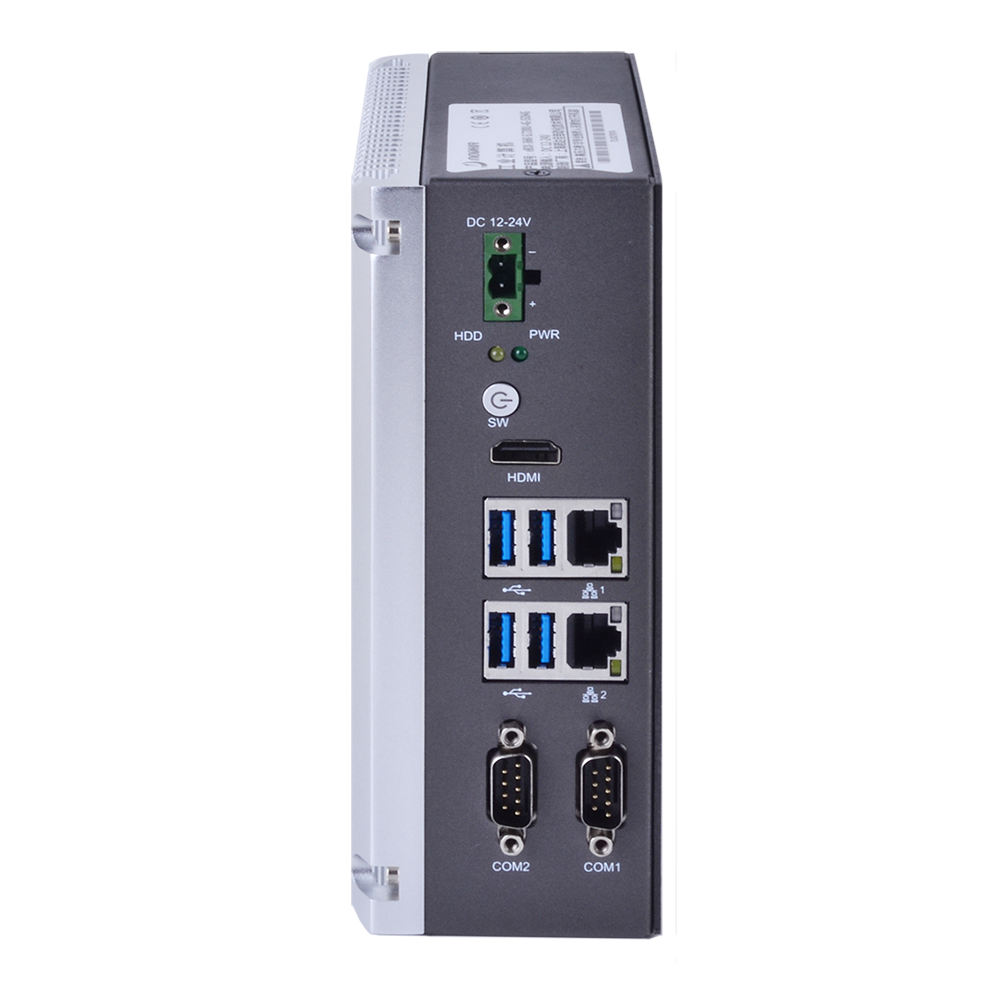

  • I/O:2COM/4USB/2LAN/HDMI



Rugged Aluminium Chassis, Din-rail mounting



Optimized for Industrial Applications

Wide Work Temperature, system operating temperature supports -20 up to +60°C

Multi-network ports and serial port expansion





Processor

  • CPU:Intel® J1900/Celeron™ 3855U
  • Frequency:Quad core 2GHz/Dual Core 1.6 GHz
  • Chipset:Integrated PCH-LP
  • Display:HDMI
  • BIOS:AMI EFI 128Mbit
  • Memory architecture:DDR3L-1666MHz
  • Memory capacity:up to 8GB
  • DIMM:1 x SODIMM

I/O Interface

  • LAN:LAN1: Intel i210 Gbe LAN controller; LAN2: Intel i210 Gbe LAN controller
  • Audio:High definition audio (HDA) ALC-662, Line-out
  • USB:4 x USB3.0/2.0/1.1
  • COM: 2 x RS-232/485 with auto data flow control
  • PCIexpress & PCI:2 x full-size (include 1 x full-size with SIM card holder)
  • HDMI:Support up to 1920 x 1200@120Hz or 2560 x 1600@60Hz

Physical

  • Dimensions :177.4mm x 145.0mm x 80.0mm (7.0" x 5.7" x 3.1")
  • Net Weight:1.88kg
  • Box Structure:Aluminum alloy box structure

Power

  • Input Voltage:12-24VDC ±10%
  • Power Dissipation:5-30 Watt
  • Type:AT
  • Power Adapter:standard configuration

Environment

  • Work temperature:-20 ~ 60° C (-4 ℉ ~140 ℉ )
  • Storage Temperature:-40 ~ 80℃ (-10 ℉ ~ 176 ℉ )
  • Relative Humidity:5~95% (Non condensation)
  • Shake:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, continuous 11ms duration
  • Safety Certification:CCC

Datasheet Download





Driver Download



Driver Name

Operation system

Download link

eBox-3560 Chipset Driver

Win10_64bit

Download

eBox-3560 Audio Driver

Win10_64bit

Download

eBox-3560 Graphics Driver

Win10_64bit

Download

eBox-3560 LAN Driver

Win10_64bit

Download

eBox-3560 Intel_sio Driver

Win10_64bit

Download

eBox-3560 Intel TXEI_3.1 Driver

Win10_64bit

Download





Certificates

eBOX-3660: No CPU/No RAM/ NO Rigid disk / 2*RS-232(RS-485 optional )/ 2*LAN/ 4USB3.0/ HDMI/ DC12~24V input/ Warranty for two years
