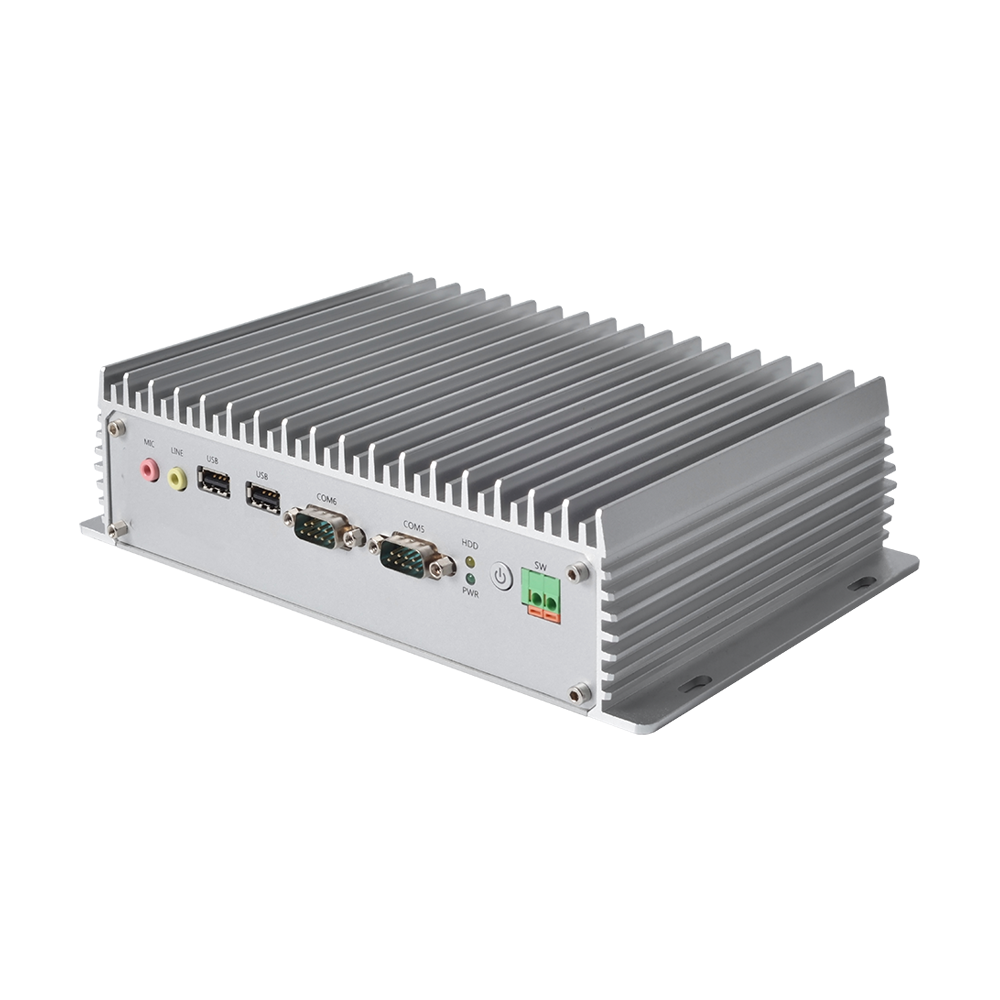

eBOX-3220(EOL) | Fanless Box PC

eBOX-3220(EOL) | Fanless Box PC

fanless industrail computer, Intel®Atom™ D2550 dual-core processor
  • Aluminum box, good shock resistance and impact resistance

  • Intel®Atom™D2550, NM10 dual-core processor

  • Support SATA 2.5" SSD, DDR3 2GB memory(4G Max)

  • 2 Realtek RTL8111E 10/100/1000Mbps network port

  • 6 RS232,Has electrical surge and ESD protection

  • DC 12V input, with over-current, over-voltage protection

  • DVI/VGA/2GLAN/6USB/6COM/AUDIO



Rugged aluminium and galvanized steel chassis, Fanless design

To ensure that excellent heat dissipation.

Fully enclosed design to prevent dust intrusion

Optimized for Industrial Applications

Wide Work Temperature, system operating temperature supports -20 up to +60°C

No cable connection inside, lower downtime rate

Support synchronous or asynchronous dual display; dual ethernet port standard configuration



Remote power on and off

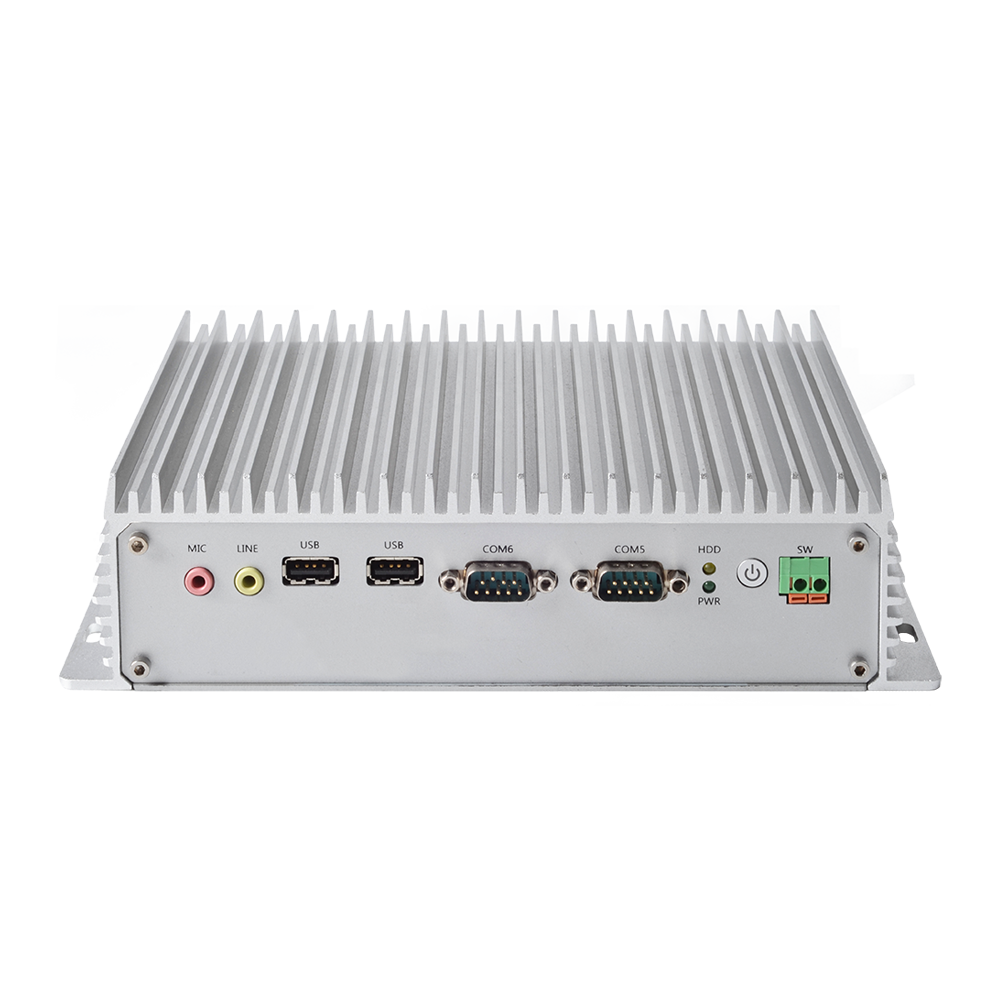

Reserved PS-ON remote switch machine terminal, the user can add this button in the cabinet panel.








Processor

  • CPU:Onboard Intel®Atom™D2550 dual-core processor(TDP10W)1.86GHZ Secondary cache 1M
  • Chipset:Intel®Atom™D2550, NM10 dual-core processor
  • Memory:Standard DDR3 2GB Memory (up to 4G memory)
  • Disk:Support SATA 2.5 SSD HDD mSATA
  • Display:Intel GMA3600 integrated graphics chip, support f DVI& VGA

I/O Interface

  • USB:6 USB2.0 ports, with electrostatic protection 8KV
  • Audio:Realtek ALC662 audio controller

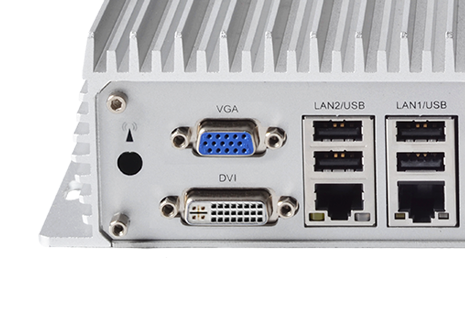

  • Rear I/O:VGA/DVI/2GLAN/6USB/6COM/AUDIO

Physical

  • Dimensions :234 *150 * 60mm
  • Weight:1.2kg
  • Box Structure:Aluminum box, good shock resistance and impact resistance

Mounting

  • Mount:Desktop,wall-mounted

Power

  • Input Voltage:DC 12V input, with over-current, over-voltage protection

Environment

  • Work temperature:-20 ~ 60°C (-4℉~140℉) (Wide temperature SSD), 0 ~ 45°C (32℉~113℉) (General temperature HDD/SSD)
  • Storage Temperature:-40~+80℃
  • Relative Humidity:95%(No condensation)
  • Vibration:50~500Hz,1.5G,0.19mm Peak to peak
  • Shock:10G/peak(11ms secretary)

Driver Download



Driver Name

Operation system

Download link

eBox-32XX Chipset Driver for J1900

Win10_64bit

Download

eBox-32XX Audio Driver

Win7_8_8.1_10_32-64bit

Download

eBox-32XX LAN driver

Win7_10_32-64bit

Download

eBox-32XX USB3.0 Driver

Win7_32_64bit

Download

eBox-32XX Graph Driver Win7_8_10_11_32_64bit Download





Certificates

eBOX-3220:D2550/2G memory/2 LAN/6 USB/6 RS232/VGA/DVI
