WP15P-D | Stainless Steel Monitor

WP15P-D | Stainless Steel Monitor

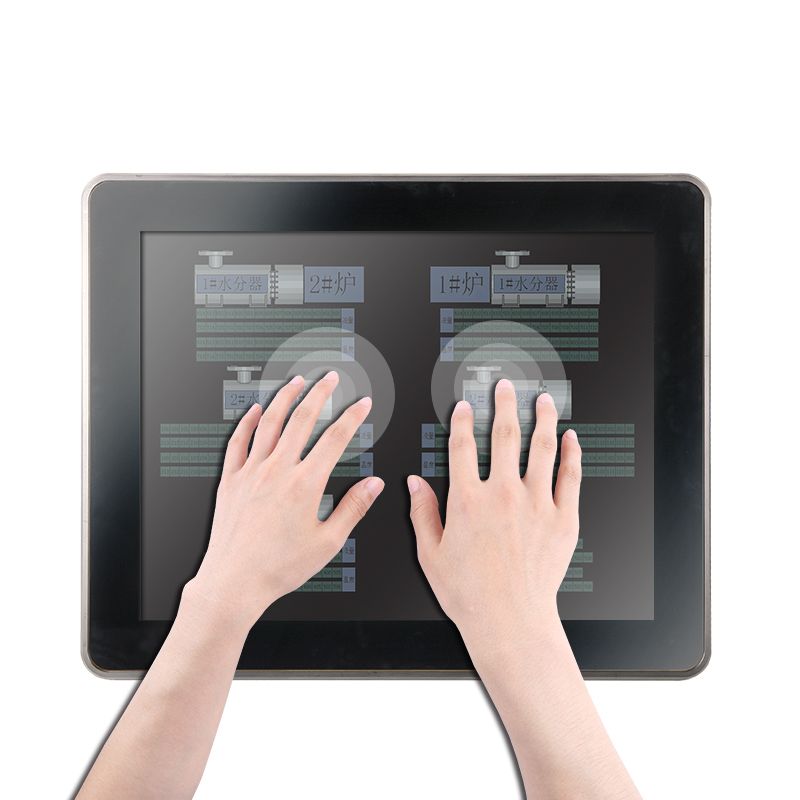

15.1 inch Rugged Stainless Steel Industrial remote touch screen monitor
  • Stainless steel industrial remote touch screen monitor with IP69K design.

  • Flexible modular and fanless design

  • Capacitive multi-touch screen



IP69K waterproof and fanless design, Rugged Aluminum Alloy Chassis

Resistant to water jets up to 80 degrees and water pressures up to 80-100 bar

Unique cooling system to ensure excellent heat dissipation. Fully enclosed design to prevent dust intrusion

Suitable to be deployed in food, pharmaceutical industries or harsh environments with strict hygiene demands





HD quality industrial-grade LCD screen and Excellent touch accuracy

High-definition LCD screen with a resolution of 1024 x 768; long backlight life, up to 30,000 hours

High resolution and response speed; Capacitance up to 10 points touch

Click life exceeds 10 million times; Mohs hardness 7H; Transmittance> 75





Wide Work Temperature range

Stainless Stell Panel PC/Monitors series are integrated with wide temperature components; system operating temperature supports from -20 up to +60°C, suitable for major industrial applications.













































Physical

  • Dimensions :375mm x 299mm x 48mm
  • Box Structure:Stainless steel wire drawing

Power

  • Power Dissipation:20W
  • Power Supply:elink into
  • Power input:elink

LCD

  • LCD Size:15" XGA TFT
  • Resolution:1024 x 768
  • Colors:16.7MB
  • Active Area :304.13mm x 228.10mm (11.97" x 8.98")
  • Backlight:LED
  • MTBF:30000hrs
  • Pixel Pitch:0.297 x 0.297
  • Luminance:420cd/m2
  • Contrast Ratio:800 : 1
  • Viewing Angle:(L) 80 / (R) 80 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type:Multi-point capacitive touch screen
  • Transmittance:> 87%
  • Controller interface:USB
  • Driver Support:Windows XP, Windows 7, Windows 8, Windows 10, Linux
  • Surface hardness:Mohs' Number 7H
  • Multi-touch:10 points (windows system)

Environment

  • Work temperature:-20 ~ 60℃ (-4~140℉)
  • Storage Temperature:-30 ~ 80℃ (-22 ~ 176℉)
  • Relative Humidity:5~95% (Non Condensation)
  • Shake:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
  • EMC:CE/FCC Class A
  • Water-proof:Front Panel IP69K

Datasheet Download



Driver Download



Driver Name

Operation system

Download link

WP15T-C J1900

Win7_32_64bit_Win8_10_64bit Download

WP15T-C Chipset Driver for 3855U

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Chipset Driver for 7200U

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Audio Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Graphics Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C LAN Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C USB 3.0 Driver

Win7_32_64bit

Download

WP15T-C ME Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Graphics driver for 7200U

Win7_32_64bit_Win8_10_64bit Download




WP15P-D: 15" TFT LCD/1024*768/1*E-link
