15 inch Rugged IP69K Stainless Steel Industrial Panel PC
  • Stainless steel industrial Panel PC with IP69K design.

  • Supports Intel®Core J1900/  8th generation 4205U CPU module

  • Flexible modular and fanless design

  • Capacitive multi-touch screen

  • 6 x M12 ports



IP69K waterproof and fanless design, Rugged Aluminum Alloy Chassis

Resistant to water jets up to 80 degrees and water pressures up to 80-100 bar

Unique cooling system to ensure excellent heat dissipation. Fully enclosed design to prevent dust intrusion

Suitable to be deployed in food, pharmaceutical industries or harsh environments with strict hygiene demands





HD quality industrial-grade LCD screen and Excellent touch accuracy

High-definition LCD screen with a resolution of 1024 x 768; long backlight life, up to 30,000 hours

High resolution and response speed; Capacitance up to 10 points touch

Click life exceeds 10 million times; Mohs hardness 7H; Transmittance> 75

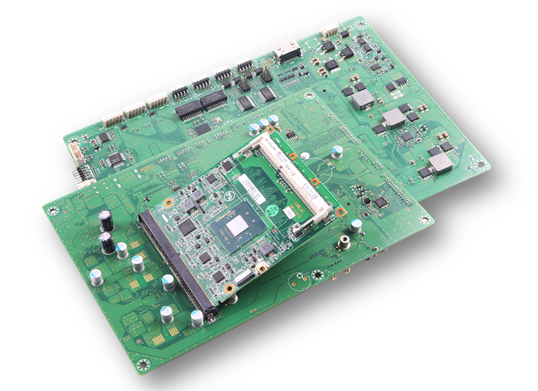

High-performance modular design

Scalable computing power (Intel® Core ™ 7th celeron)

Intel Core J1900/8th generation 4205U CPU module Processor (within 15w)

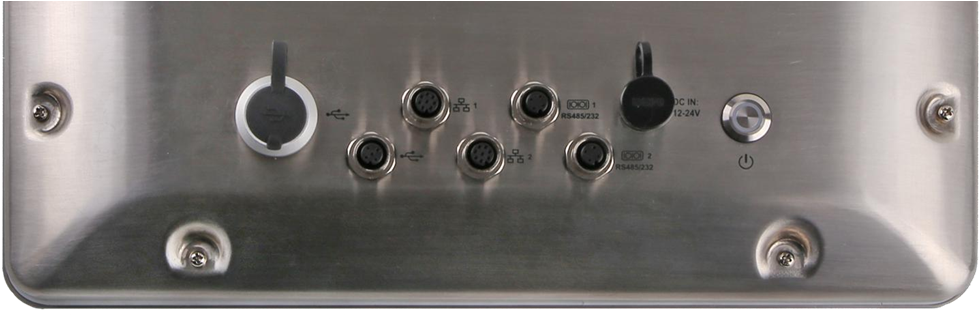

6x M12 ports

2x Intel i210 LAN ,2x RS232/485,2x USB2.0






Wide Work Temperature range

Stainless Stell Panel PC/Monitors series are integrated with wide temperature components; system operating temperature supports from -20 up to +60°C, suitable for major industrial applications.













































Processor

  • CPU:Intel® Core J1900/8th generation 4205U CPU module
  • Frequency:Quad core 2GHz/Dual Core 1.8 GHz
  • L3 Cache:2MB
  • Chipset:Intel® Bay Trail-M
  • Memory:1 x 204-pin SODIMM DDR3L-1333MHz support up to 8GB
  • Storage Medium:1 x mSATA

I/O Interface

  • LAN:2 x Intel I210 1000Mbps
  • Audio:Non
  • USB:2 x USB2.0
  • COM:2 x RS232 (RS485 in option)
  • Expansion slot:2x Mini-PCIe slot, extensible 3G/4G, WIFI wireless card

Physical

  • Dimensions :360mm x 284mm x 53mm
  • Net Weight:5.3KG
  • Mounting:Panel, desktop, VESA

Operating System

  • OS:Windows 7, Windows 8, Windows 10, Linux

Power

  • Input Voltage:
  • Power Dissipation:Max 38.6Watt
  • Power input:12-24VDC

LCD

  • LCD Size:15" XGA TFT
  • Resolution:1024 x 768
  • Colors:16.7MB
  • Active Area :304.13mm x 228.10mm (11.97" x 8.98")
  • Backlight:LED
  • MTBF:30000hrs
  • Pixel Pitch:0.297 x 0.297
  • Luminance:420cd/m2
  • Contrast Ratio:800 : 1
  • Viewing Angle:(L) 80 / (R) 80 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type:Multi-point capacitive touch screen
  • Transmittance:> 87%
  • Controller interface:USB
  • Driver Support:Windows 7, Windows8, Windows10, Linux
  • Surface hardness:Mohs' Number 7H
  • Multi-touch:10 points (windows system)

Environment

  • Work temperature:-20 ~ 60℃ (Use wide temperature SSD); 0 ~ 40℃ (Use normal temperature SSD/HDD)
  • Storage Temperature:-30 ~ 80℃
  • Relative Humidity:10~95% (Non Condensation)
  • Shake:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
  • EMC:CE/FCC Class A
  • Water-proof:IP69K

Datasheet Download



Driver Download



Driver Name

Operation system

Download link

WP15T-C J1900

Win7_32_64bit_Win8_10_64bit Download

WP15T-C Chipset Driver for 3855U

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Chipset Driver for 7200U

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Audio Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Graphics Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C LAN Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C USB 3.0 Driver

Win7_32_64bit

Download

WP15T-C ME Driver

Win7_32_64bit_Win8_10_64bit

Download

WP15T-C Graphics driver for 7200U

Win7_32_64bit_Win8_10_64bit Download




WP1501T-C-J1900: 15" LCD/1024*768/CPUJ1900/no memory/no SSD/2LAN/2*RS232(Optional 485)/2USB/ Extensible WIFI&3G/DC IN 12~24V

WP1501T-C-4205U: 15"LCD/ 1024*768/CPU4205U/no memory/no SSD/2LAN/2*RS232(Optional 485)/2USB/ Extensible WIFI&3G/DC IN 12~24V
