TPC6000-D153 | 15" Panel PC

TPC6000-D153 | 15" Panel PC

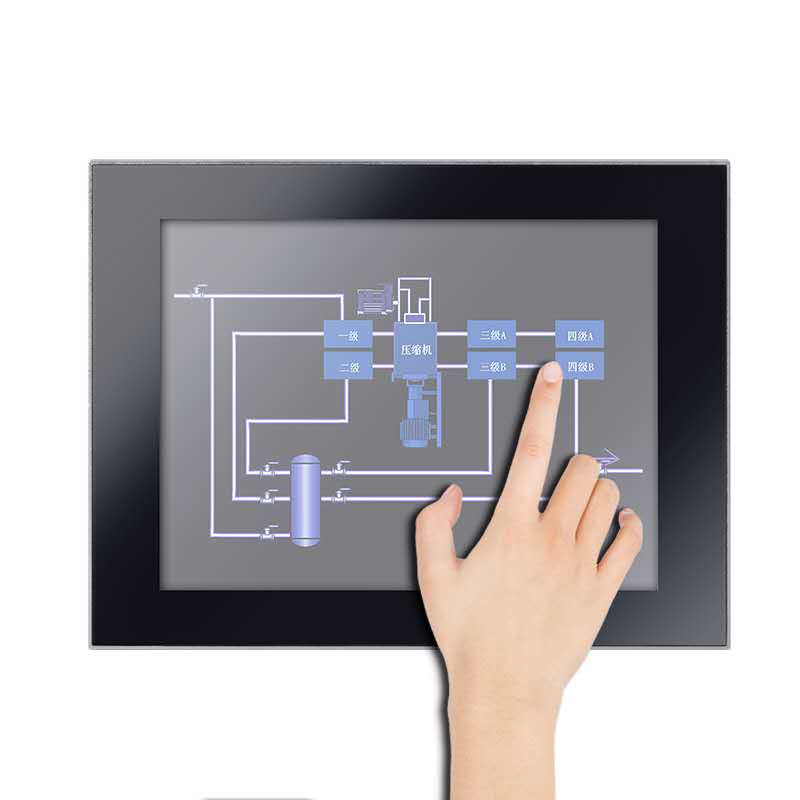

15 inch fanless Panel PC based on Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U processor
  • Aluminum-magnesium alloy box,Front panel IP65 with PET film

  • 15'' SXGA TFT,Optimum resolution 1024×768, Bezel free Resistive touch screen

  • Support Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U processor

  • 2x Gigabit Ethernet ports,2x RS-232 COM(up to 6x COM),8KV electrostatic protection, 600W TVS surge protection, RS485 support automatic flow control

  • Wide voltage power supply: DC12~24V.Support reverse polarity protection, overvoltage protection, overcurrent protection

  • Extend WIFI/3G/4G network/1 x Mini-PCIe slot/1 x EasyBUS slot

  • Fanless design, VESA Mount, Panel Mount

  • I/O: VGA / DVI / 2GLAN / 4USB / 2COM



Rugged IP65 and NEMA4 Aluminium Chassis, Fanelss design

Front Panel IP65/NEMA4 Standard, water and dust proof

Fanless and sealed enclosure


Easybus design

There is an Easybus extension design, and can be various buses via Mini PCIe

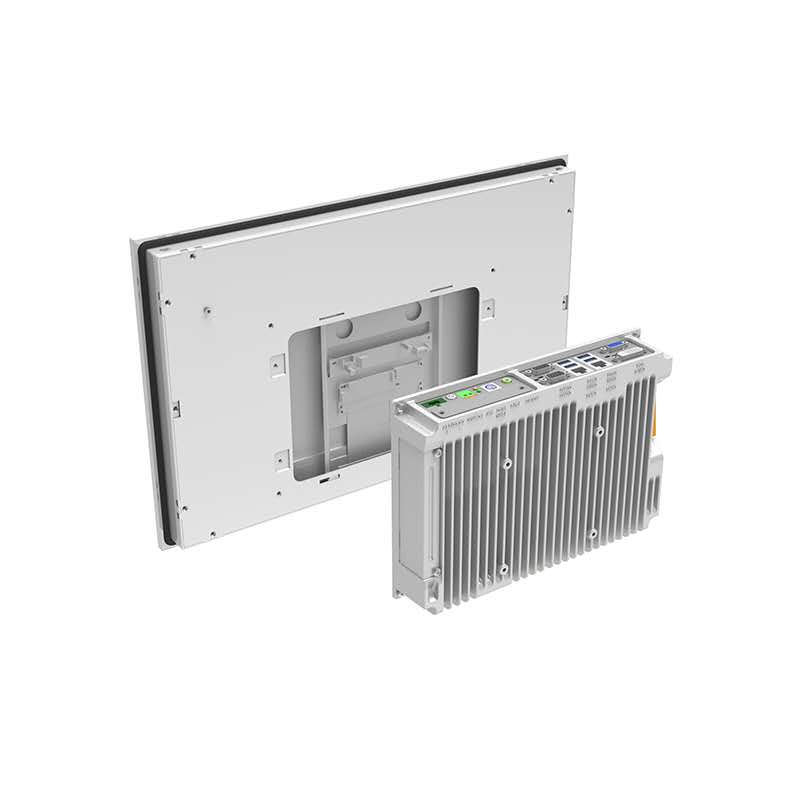

Modular design: optimized for Industrial Panel Applications

Flexible modular design for system box; powerful computing performance for low power consumption

Different mounting options as requests





Processor

  • CPU:Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U
  • Frequency:Quad core 2.0GHz / Dual Core 1.8GHz / Quad core 2.0GHz / Dual Core 2.5GHz
  • L3 Cache:1.5MB/2MB/2MB/3MB
  • Chipset:Integrated PCH-LP
  • Memory:1×DDR4-2400MHz,max 16GB / 1×DDR4-2400MHz,max 16GB / 1×DDR3L-1333MHz,max 8GB / 1×DDR3L-1600MHz,max 8GB
  • Storage Medium:1 x 2.5" SATA bay + 1 x mSATA

I/O Interface

  • LAN:2 x Intel i211 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection
  • USB:4 x USB3.0/2.0/1.1
  • COM:2 x RS-232/RS-485 with surge protection, RS485 support automatic flow control
  • Audio:Realtek ACL662 Audio controller
  • Rear I/O:DVI-D / 2 x GLAN / 4 x USB / 2 x COM /2 x PS2 / Line-out/Mic-in

Physical

  • Dimensions :371mm×295mm×66 mm (14.60"×11.61"×2.60")
  • Cut Out Size :354mm×278mm (13.94"×10.94")
  • Weight:4.54kg

Operating System

  • OS:Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux, QNX, VXWORKS

Power

  • Input Voltage:12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection
  • Power Dissipation:38.6Watt

LCD

  • LCD Size:15" XGA TFT
  • Resolution:1024×768
  • Colors:16.7MB
  • Active Area :304mm×228mm (11.97"×8.98")
  • Backlight:WLED
  • MTBF:50000hrs
  • Pixel Pitch:0.297×0.297
  • Luminance:350cd/m2
  • Contrast Ratio:700:1
  • Viewing Angle:(L) 80 / (R) 80 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type:Resistive touch screen
  • Resolution:4096 x 4096
  • Transmittance:> 75%
  • Controller interface:USB
  • Driver Support:Windows 7, Windows8, Windows10, Linux
  • Response Time:< 5ms
  • Surface hardness:Mohs' Number 3H
  • Click life:250g / 35,000,000 times
  • Draw life:250g / 5,000,000 times

Environment

  • Work temperature:-20 ~ 60°C (-4~140°F) (Wide temperature SSD); 0 ~ 45°C (32~113°F) (General temperature HDD/SSD)
  • Storage Temperature: -30 ~ 80°C (-22 ~ 176°F)
  • Relative Humidity:5~95% (Non condensation)
  • Vibration:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-27, 半正弦波, 持续11ms
  • EMC:CE/FCC Class B
  • Water-proof:Front panel IP65

Datasheet Download



Driver Download



Driver Name

Operation system

Download link

TPC6000-DXX3 series Driver for J1900

Win10_64bit

Download

TPC6000-DXX3 series Driver for 7200U

Win7_10_32_64bit

Download

TPC6000-DXX3 series Chipset Drivers for 6412

Win10_64bit

Download

TPC6000-DXX3 series Chipset Driver for CSE

Win10_64bit

Download

TPC6000-DXX3 series Audio Driver

Win7_8_8.1_10_32-64bit

Download

TPC6000-DXX3 series LAN driver

Win7_10_64bit

Download

TPC6000-DXX3 series Graph Driver

Win7_8_10_11_32_64bit

Download

TPC6000-DXX3 series USB3.0 Driver

Win7_32_64bit

Download

TPC6000-DXX3 series Touch Driver

Win7_8_10_11_32_64bit

Download



Ordering Information

Model

Specification

TPC6000-D153-L-J6412

15"LCD/ Intel J6412 2.0G Quad Core CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/ 1024*768/DC12V-24V input / Two-year warranty

TPC6000-D153-L-J1900

15"LCD/ Intel J1900 2.0G Quad Core CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/ 1024*768/DC12V-24V input / Two-year warranty

TPC6000-D153-L-4205U

15"LCD/ Intel 4205U Dual Core 1.8GHz CPU/No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/ 1024*768/DC12V-24V input / Two-year warranty

TPC6000-D153-L-WL8145U

15"LCD/ Intel 4205U Dual Core 1.8GHz CPU/ No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/ 1024*768/DC12V-24V input / Two-year warranty

TPC6000-D153-L-SL7200U

15"LCD/Intel 8145U Dual Core 2.1 GHz CPU/ / No Memory / No Hard /2*RS-232/485(Optional) / 2*LAN /4*USB3.0/ 1024*768/DC12V-24V input / Two-year warranty

























■Optional Equipment

Porduct model

Specifications

Option

Input: 100~240V~50/60Hz 1.7A Output:+12.0V—5A,60Watt

Option

DDR3 2G/4G/8G, max to 8G

Standard

4*Hooks

Standard

Manufacturer Certificate

Standard

Warranty Card

Standard
