NP-6310 | Book Style Super Capacitor UPS

NP-6310 | Book Style Super Capacitor UPS

The UPS module that can protect your PC and data in case of power loss

Super capacitor, high conversion efficiency, environmental protection and safety

Wide voltage input: 12V/24V adaptive

Backup mode power output: 12V/24V (depending on the input voltage)

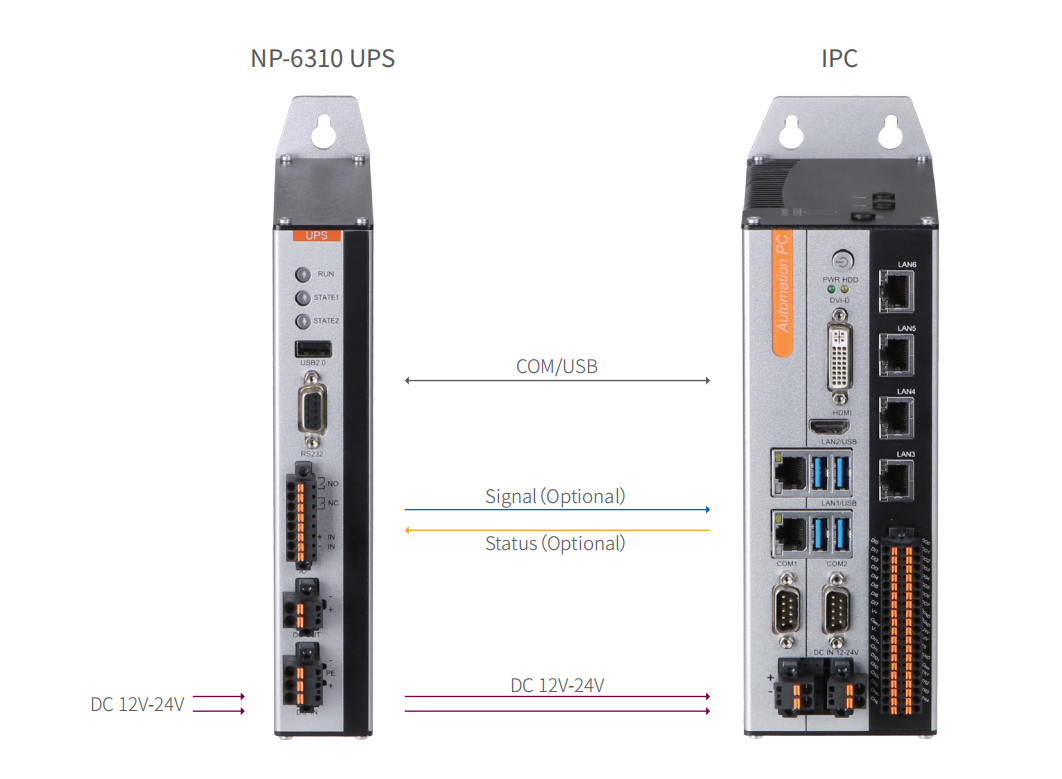

The powered device (PC) can monitor the status in real time via RS-232/USB

Long backup time, the powered device (PC) automatically shuts down safely

Long life cycle

Wide operating temperature: -20 ~ 60°C



NP-6310 is a UPS module that can protect your PC and data in case of power loss, it adapt The UPS module is used for the uninterruptible power supply of your PC. In the event of a failure of the external supply, the module ensures that the application software can save important data. The module adopts super capacitor technology and intelligent power management technology, and can independently manage the startup and shutdown of the device. It can operate in a wide temperature ranging from -20 degrees Celsius to 60 degrees Celsius.





Processor

  • CPU:Industrial grade high current super capacitor backup controller

I/O Interface

  • USB:1 x Type-B interfaces(for Internal debug)
  • COM:1 x DB9(female) for 3-wire RS-232

Physical

  • Dimensions :(L)200.4mm x (W)154.5mm x (H)38mm
  • Box Structure:Aluminum-magnesium alloy BOX

Mounting

  • Mount:Wall-mounted

Operating System

  • Microsoft Windows:Windows 7, Windows 7 Embedded, Windows 10
  • Linux:Ubuntu

Power

  • Input Voltage:DC12V/24V

Environment

  • Work temperature:-20ºC ~ 60ºC (-4℉~140℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Storage Temperature:-40ºC ~ 80ºC (-40 ~ 176℉) with air flow (msATA), 5~95% (Non-condensing)
  • Vibration:SSD : 1.5 Grms, IEC 6006 x -2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
  • EMC:CE/FCC Class A
