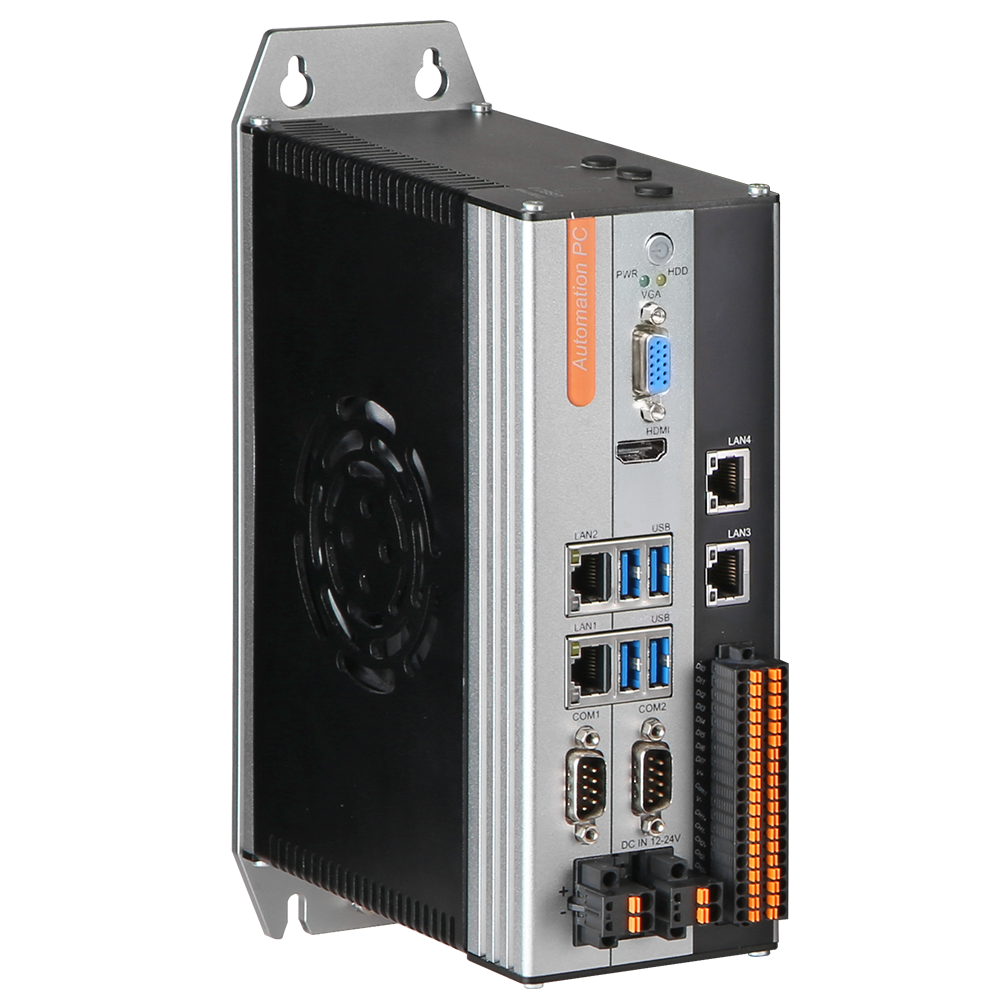

Automation PC, Intel® Core™ 10th/11th gen i9/i7/i5/i3 LGA1200 type CPU; DIO and PoE control All In One Design

Support Intel® Core™ 10th/11th generation i9/i7/i5/i3 high performance processors, Max.TDP 65W

2 x Intel GbE LAN controller

2 x Intel GbE PoE LAN controller

4 x USB3.0, USB2.0 Type A on board for dongle

2 x RS232/RS485, RS485 support auto flow control

Support both VGA and HDMI display port

1 x miniPCIE expansion slot,Support Wifi,3G/4G modules

32 x isolated DIO(16 x DI, 16 x DO)

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Support wall-mounted or DIN-Rail fixing style

Wide operating temperature -20 ~ 60℃ supported


DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection




Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control






An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss




Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

Customized Logo




Separate space for Fan

With good quality and perfect design for dust-proof protection







  • CPU:Intel® Core™ 10th/11th gen i9/i7/i5/i3 LGA1200 type CPU, Max.65W
  • Memory:2 x SO-DIMM DDR4,max up to 32GB
  • Storage Medium:1 x mSATA bay;1 x M.2(B Key, Type 2280) bay support SATA
  • BIOS:AMI UEFI 64Mbit

I/O Interface

  • LAN:2 x Intel GbE LAN controller
  • USB:4 x USB3.0, 1 x USB2.0 Type A on the board for USB dongle
  • COM:2 x COM(DB-9), selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control, (ESD protection for RS232: Air gap ±8KV, Contact ±6KV)
  • DI:16 x DI NPN/PNP,isolated 2500 Vrms
  • DO:16 x DO, Transistor output, Imax:0.5A per channel,isolated 2500 Vrms
  • PoE:2 x Intel GbE PoE LAN controller, max. 15W per channel


  • VGA:Support up to 1920 x 1080@60Hz
  • HDMI:Support up to 3840 x 2160@60Hz


  • Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
  • Weight:2.4Kg
  • Box Structure:Aluminum-magnesium alloy BOX
  • Cooling system:Fan embedded to assist cooling


  • Mount:Wall-mounted or DIN-Rail

Operating System

  • Microsoft Windows:Windows 10 IoT
  • Linux:Ubuntu, CentOS, Debian


  • Input Voltage:DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection, Must be DC24V input in the case of using light control functionalities
  • Power Dissipation:Max. 160W


  • Work temperature:-20 ~ 60℃(-4℉~140℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Storage Temperature:-40 ~ 80℃ (-40 ~ 176℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Relative Humidity:5~95% (Non-condensing)
  • Vibration:5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
  • Shock:20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
  • EMC:CE/FCC Class A


  • WatchDog:1~255 levels programmable

Expansion Slot

  • MiniPCIe:1 x Full-size PCIe Mini slot with SIM card holder(with USB signal)

Datasheet Download              User Manual Download


Driver Download


Driver Name

Operation system

Download link

NP-6135 series Chipest Driver for W580



NP-6135 series  ME Driver for W580



NP-6135 series  LAN driver



NP-6135 series  USB3.0 Driver



NP-6135 series  Graph Driver




IO Driver Download

■Ordering Information

Prduct Description
CPU:NULL, RAM:NULL, mSATA:NULL, M.2 SATA:NULL, 2 x RS232/485(Selectable), 2 x LAN,
4 x USB3.0, VGA/HDMI display port, 16x DI, 16 x DO,4 x External trigger input,2 x PoE LAN, DC12~24V Power input



Parts Description

Intel® Core™ Comet lake

i3-10100T, i3-10100, i3-10105T, i3-10105, i5-10400T, i5-10400, i5-10500 … …

Intel® Core™ Rocket lake

i5-11400T, i5-11500T, i5-11600T, i5-11400, i5-11500, i5-11600 … …

DDR4 Memory

DDR4-2400MHz , 4GB, 8GB, 16GB


64GB, 128GB, 256GB, 512GB, ITB


128GB, 256GB, 512GB, 1TB, 2TB

Wifi Set

miniPCIE WIFI Set (7260 series) ,Cylindrical antenna

3G/4G Module

mini PCIE,EC20, EG25, EC25

Mount Option
