NP-6135 | Automation PC i9/i7/i5/i3

Automation PC, Intel® Core™ 10th/11th gen i9/i7/i5/i3 LGA1200 type CPU

Support Intel® Core™ 10th/11th generation i9/i7/i5/i3 high performance processors，Max.

TDP 65W

2 x Intel GbE LAN controller

4 x USB3.0, USB2.0 Type A on board for dongle

2 x RS232/RS485, RS485 support auto flow control

Support both VGA and HDMI display port

1 x miniPCIE expansion slot，Support Wifi,3G/4G modules

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Support wall-mounted or DIN-Rail fixing style

Wide operating temperature -20 ~ 60℃ supported

CONTACT ME

Product Highlight Specifications File Download Order Information

DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection

Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control

An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss

Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

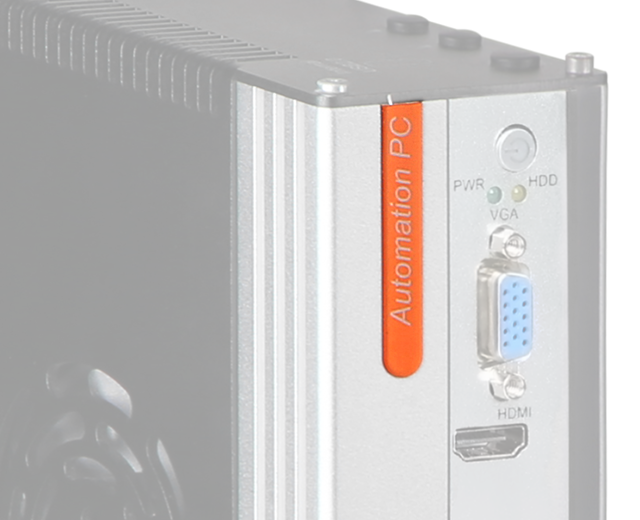

Customized Logo

Separate space for Fan

With good quality and perfect design for dust-proof protection

Processor

CPU：Intel® Core™ 10th/11th gen i9/i7/i5/i3 LGA1200 type CPU, Max. TDP 65W
Memory：2 x SO-DIMM DDR4，max up to 32GB
Storage Medium：1 x mSATA bay;1 x M.2(B Key, Type 2280) bay support SATA
BIOS：AMI UEFI 64Mbit

I/O Interface

LAN：2 x Intel GbE LAN controller
USB：4 x USB3.0, 1 x USB2.0 Type A on the board for USB dongle
COM：2 x COM(DB-9), selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control, (ESD protection for RS232: Air gap ±8KV, Contact ±6KV)

Display

VGA：Support up to 1920 x 1080@60Hz
HDMI：Support up to 3840 x 2160@60Hz

Physical

Dimensions ：(L)200mm x (W)154.5mm x (H)57.6mm
Weight：1.9 Kg
Box Structure：Aluminum-magnesium alloy BOX
Cooling system：Fan embedded to assist cooling

Mounting

Mount：Wall-mounted or DIN-Rail

Operating System

Microsoft Windows：Windows 10 IoT
Linux：Ubuntu, CentOS, Debian

Power

Input Voltage：DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection, Must be DC24V input in the case of using light control functionalities
Power Dissipation：Max. 120W

Environment

Work temperature：-20 ~ 60℃(-4℉~140℉) with air flow (mSATA), 5~95% (Non-condensing)
Storage Temperature：-40 ~ 80℃ (-40 ~ 176℉) with air flow (mSATA), 5~95% (Non-condensing)
Relative Humidity：5~95% (Non-condensing)
Vibration：5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
Shock：20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
EMC：CE/FCC Class A

Other

WatchDog：1~255 levels programmable

Expansion Slot

MiniPCIe：1 x Full-size PCIe Mini slot with SIM card holder(with USB signal)

Datasheet Download User Manual Download

Driver Download

Driver Name	Operation system	Download link
NP-6135 series Chipest Driver for W580	Win10_64bit	Download
NP-6135 series ME Driver for W580	Win10_32_64bit	Download
NP-6135 series LAN driver	Win7_10_32-64bit	Download
NP-6135 series USB3.0 Driver	Win7_32_64bit	Download
NP-6135 series Graph Driver	Win10_11_64bit	Download

■Ordering Information

Prduct	Description
NP-6135	CPU:NULL, RAM:NULL, mSATA:NULL, M.2 SATA:NULL, 2 x RS232/485(Selectable), 2 x LAN, 4 x USB3.0, VGA/HDMI display port, DC12~24V Power input

■Options

Parts	Description
CPU	Intel® Core™ Comet lake i3-10100T, i3-10100, i3-10105T, i3-10105, i5-10400T, i5-10400, i5-10500 … …
	Intel® Core™ Rocket lake i5-11400T, i5-11500T, i5-11600T, i5-11400, i5-11500, i5-11600 … …
DDR4 Memory	4GB, 8GB, 16GB
mSATA SSD	64GB, 128GB, 256GB, 512GB, ITB
M.2 SATA SSD	128GB, 256GB, 512GB, 1TB, 2TB
Wifi Set	miniPCIE WIFI Set (7260 series) ,Cylindrical antenna
3G/4G Module	mini PCIE，EC20, EG25, EC25
Mount Option	DIN-Rail
