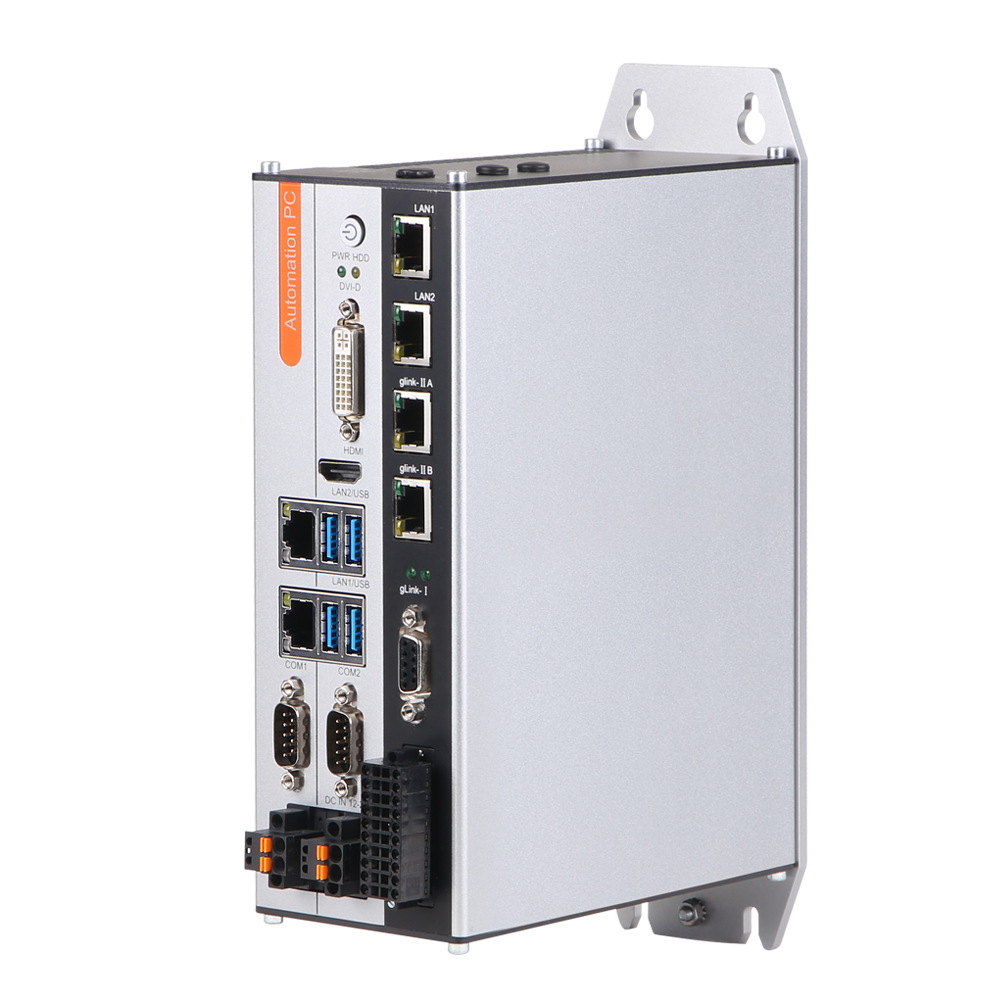

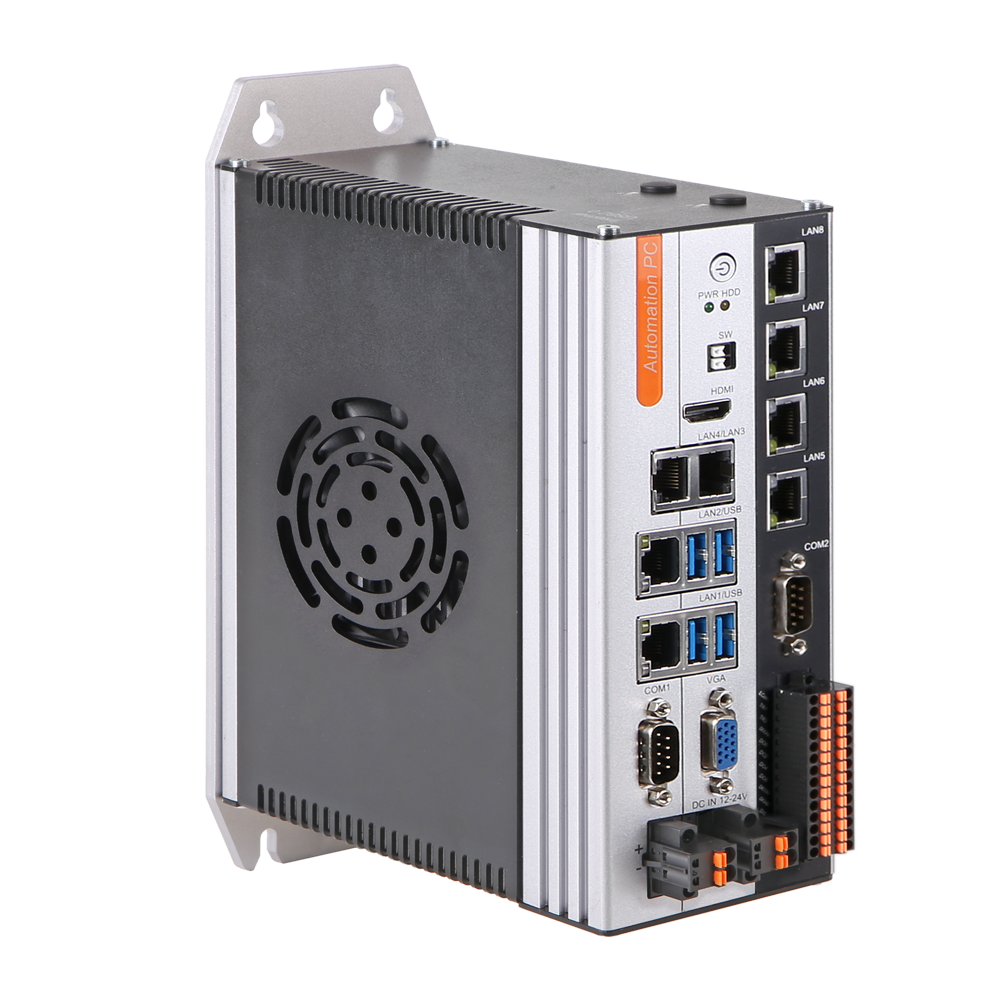

NP-6123-L4 | Automation PC i3/i5/i7

NP-6123-L4 | Automation PC i3/i5/i7

Automation PC, Intel H110 Express Chipset and support Intel® Core™ 6th/7th generation i3,i5,i7, Pentium, Celeron and LGA1151 processors

Support Intel® Core™ 6th/7th/8th generation i7/i5/i3/Pentium/Celeron high performance

processors,Max. TDP 65W

8 x Intel GbE LAN controller

4 x USB3.0, USB2.0 Type A on board for dongle

1 x RS232/RS485, 1 x RS485, RS485 support auto flow control

Support both VGA and HDMI display port

8 x DI, 8 x DO (isolated)

Supports mSATA and 2.5” SATA hard disk storage

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Support wall-mounted or DIN-Rail fixing style

Wide operating temperature -20 ~ 60℃ supported






DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection








Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control













An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss










Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

Customized Logo









Separate space for Fan

With good quality and perfect design for dust-proof protection










Processor

  • CPU:Intel® Core™ 6th/7th/8th gen i7/i5/i3/Pentium/Celeron LGA1151 type CPU
  • Chipset:2 x SO-DIMM DDR4-2400MHz,max up to 32GB
  • DIMM:2 x 260-pin SODIMM
  • Storage Medium:1 x mSATA bay;1 x 2.5“ SATA bay
  • BIOS:AMI UEFI 64Mbit

I/O Interface

  • LAN:8 x Intel GbE LAN controller
  • USB:4 x USB3.0, 1 x USB2.0 Type A on the board for USB dongle
  • COM:2 x COM(DB-9), 1 x selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control,1 x RS485
  • DI:8 x DI NPN/PNP,isolated 2500 Vrms
  • DO:8 x DO, Transistor output, Imax:0.5A per channel,isolated 2500 Vrms

Display

  • VGA:Support up to 1920 x 1200@60Hz
  • HDMI:Support up to 3840 x 2160@60Hz

Physical

  • Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
  • Weight:2.4Kg
  • Box Structure:Aluminum-magnesium alloy BOX with fan embedded to assist cooling

Mounting

  • Mount:Wall-mounted or DIN-Rail fixing style

Operating System

  • Microsoft Windows:Windows 10 IoT
  • Linux:Ubuntu, CentOS, Debian

Power

  • Input Voltage:DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection
  • Consumption:Max. 200W

Environment

  • Work temperature:-20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD)
  • Storage Temperature:-40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD)
  • Relative Humidity:5~95% (Non-condensing)
  • Vibration:5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
  • Shock:20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
  • EMC:CE/FCC Class A

Other

  • WatchDog:1~255 levels programmable

Datasheet Download



Driver Download



Driver Name

Operation system

Download link

NP-6123 series Driver for H110

Win7-10_32-64bit

Download

NP-6123 series  Audio Driver

Win7_8_8.1_10_32-64bit

Download

NP-6123 series  LAN driver

Win7_10_32-64bit

Download

NP-6123 series  USB3.0 Driver

Win7_32_64bit

Download

NP-6123 series  Graph Driver

Win7_8_10_11_32_64bit

Download



IO Driver Download

■Ordering Information

Prduct Description
NP-6123-L4
CPU:NULL, RAM:NULL, mSATA:NULL, SATA:NULL,1 x RS-232/485(Selectable), 1 x RS-485,
8 x LAN, 4 x USB3.0,8 x DI,8 x DO,VGA/HDMI display port, DC12~24V Power input



■Options

Parts Description
CPU

Intel® Pentium G3900, G4400

Intel® Core™ Skylake: i3-6100,i3-6100T,i5-6400,i5-6400T,i5-6500,i5-6500T,i7-6700,i7-6700T

Intel® Core™ Kaby Lake:i3-7100,i5-7400,i5-7500,i7-7700,i7-7700T

Intel® Core™ Coffee Lake: i3-8100,i5-8400,i5-8500,i7-8700

DDR4 Memory

DDR4-2400MHz , 4GB, 8GB, 16GB

 mSATA SSD

64GB, 128GB, 256GB, 512GB,1TB

SATA SSD

1TB, 2TB

Mount Option

DIN-Rail
