NP-6122 / NP-6132 Series
Compact Control Cabinet Industrial Automation PC with high performance processor
The ONLY difference between NP-6122 and NP-6132 is:
NP-6122 Support Intel® Core™ 6/7/8/9th Gen. i7/i5/i3/Pentium® /Celeron® LGA1151 type CPU
NP-6132 Support Intel® Core™ 10/11th Gen. i9/ i7/i5/i3 LGA1200 type CPU

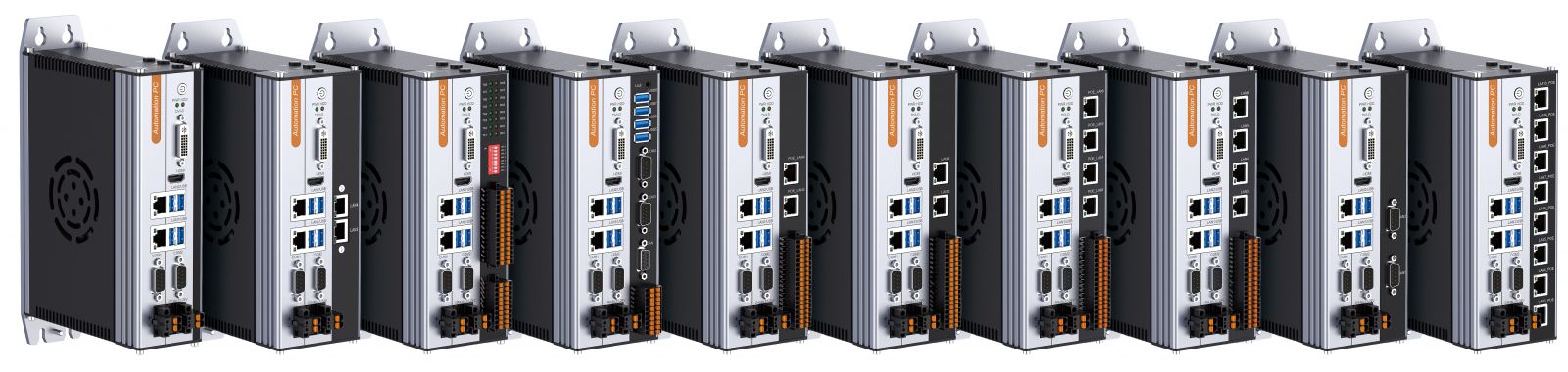

.jpg) |
|
NP-6122 |
NP-6122-L2 |
NP-6122-JH4 |
NP-6122-JH3 |
NP-6122-JH2 |
NP-6122-JH2B |
NP-6122-H1 |
NP-6122-H1B |
NP-6122-CAN2 |
NP-6122-8PoE |
Product Highlights
 |
|
 |
|
 |
|
 |
|
 |
|
Easy to switch: automatic data flow control |
|
DC12~24V Power supply with overvoltage protection |
|
USB 2.0 inside for USB dongle |
|
Customized logo |
|
Separate fan space |
NP-6122/ NP-6132 Series Interface
NP-6122/NP-6132 has 9 extensions, and can be used for different applications.
|
|
NP-6122/NP-6132
|
|
|
|
|
|
NP-6122-H1/NP-6132-H1 | Extension interface
-
4×Intel® GbE PoE LAN, max. 15w per channel
-
8×DI NPN/PNP, isolated 2500 Vrms
-
8×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms
-
4×PWM Light power control with external trigger input, Imax: 1A per channel
|
.png) |
|
|
 |
NP-6122-JH2B/NP-6132-JH2B | Extension interface
-
2×Intel® GbE PoE LAN, max. 15w per channel
-
16×DI NPN/PNP, isolated 2500Vrms
-
16×DO Transistor output, Imax:0.5A per channel, isolated 2500 Vrms
|
|
|
NP-6122-H1B/NP-6132-H1B | Extension interface
-
4×Intel® GbE PoE LAN, max. 15w per channel
-
16×DI NPN/PNP, isolated 2500Vrms
-
16×DO Transistor output, Imax: 0.5A per channel, isolated 2500 Vrms
|
|
|
|
 |
NP-6122-JH3/NP-6132-JH3 | Extension interface
-
4×USB2.0
-
2×RS232/485, RS485 support auto flow control
-
2×CAN Bus 2.0A/B, 1 x DB9(Female)
-
8×DI NPN/PNP, isolated 2500Vrms
-
8×DO Transistor output, Imax: 0.5A per channel, isolated 2500 Vrms
|
|
|
NP-6122-JH2/NP-6132-JH2 | Extension interface
-
2×Intel® GbE PoE LAN, max. 15w per channel
-
8×DI NPN/PNP, isolated 2500Vrms
-
8×DO Transistor output, Imax: 0.5A per channel, isolated 2500 Vrms
-
4×PWM Light power control with external trigger input, Imax: 1A per channel
|
|
|
|
 |
NP-6122-JH4/NP-6132-JH4 | Extension interface
-
4×USB2.0
-
2×RS232/485, RS485 support auto flow control
-
2×CAN Bus 2.0A/B, 1 x DB9(Female)
-
8×DI NPN/PNP, isolated 2500Vrms
-
8×DO Transistor output, Imax: 0.5A per channel, isolated 2500 Vrms
|
|
|
NP-6122-8PoE/NP-6132-8PoE | Extension interface
-
8×Intel® GbE PoE LAN controller, max. 15W per channel
|
 |
|
|
 |
NP-6122-CAN2/NP-6132-CAN2 | Extension interface
|
|
|
NP-6122-L2/NP-6132-L2 | Extension interface
|
 |
NP-6122 series: Separate Fan space, Support 6/7/8th generation LGA1151 sockeT type CPU (TDP max to 65watt), 2x SO-DIMM DDR4 RAM up to 32GB, 1x mSATA, 1x M.2 (2280 TYPE), DC12~24V, option wall mounted and Din-rail
NP-6132 series: Separate Fan space, Support 10/11th generation LGA1200 sockeT type CPU (TDP max to 65watt), 2x SO-DIMM DDR4 RAM up to 32GB, 1x mSATA, 1x M.2 (2280 TYPE), DC12~24V, option wall mounted and Din-rail
|
Product |
LAN |
PoE |
USB |
COM |
DIO |
Light source control |
CAN |
Display |
mini PCIe |
|
NP-6122/NP-6132
|
2
|
/ |
4 |
2x RS232/485 |
/ |
/ |
/ |
1 x DVI-D
1 x HDMI
|
1x mini PCIe |
|
NP-6122-8PoE/NP-6132-8PoE
|
2
|
8 |
4 |
2x RS232/485 |
/ |
/ |
/ |
1x mini PCIe |
|
NP-6122-CAN2/NP-6132-CAN2
|
2
|
/ |
4 |
2x RS232/485 |
/ |
/ |
2 |
/ |
|
NP-6122-H1/NP-6132-H1
|
2
|
4 |
4 |
2 x RS232/485
|
8 DI, 8 DO |
4 |
/ |
1x mini PCIe |
|
NP-6122-H1B/NP-6132-H1B
|
2
|
4 |
4 |
2 x RS232/485 |
16 DI, 16 DO
|
/ |
/ |
1x mini PCIe |
|
NP-6122-JH2/NP-6132-JH2
|
2
|
2 |
4 |
2 x RS232/485 |
8 DI, 8 DO
|
4 |
/ |
1x mini PCIe |
|
NP-6122-JH2B/NP-6132-JH2B
|
2
|
2 |
4 |
2 x RS232/485 |
16 DI, 16 DO
|
4 |
/ |
1x mini PCIe
|
|
NP-6122-JH3/NP-6132-JH3
|
2
|
/
|
8
|
4 x RS232/485 |
8 DI, 8 DO
|
/
|
1 or 2
|
1x mini PCIe
|
|
NP-6122-JH4/NP-6132-JH4
|
2
|
/
|
4
|
2 x RS232/485
8 x RS485
|
8 DI,
4 Relay DO
|
/
|
/
|
1x mini PCIe
|
|
NP-6122-L2/NP-6132-L2
|
4 |
/ |
4 |
2 x RS232/485 |
/
|
/
|
/ |
/ |
Processor
- CPU：NP-6122 Support Intel® Core™ 6/7/8/9th Gen. i7/i5/i3/Pentium® /Celeron® LGA1151 type CPU; NP-6132 Support Intel® Core™ 10/11th Gen. i9/ i7/i5/i3 LGA1200 type CPU
- Memory：2 x SO-DIMM DDR4-2400MHz，max up to 32GB
- DIMM：2 x 260-pin SODIMM
- Storage Medium：1 x mSATA bay;1 x M.2(B Key, Type 2280) bay support SATA
- BIOS：AMI EFI 64Mbit
I/O Interface
- LAN：2 x Intel GbE LAN controller
- USB：4 x USB3.0, 1 x USB2.0 Type A on the board for USB dongle
- COM：2 x COM(DB-9), selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control,(ESD protection for RS232: Air gap ±8KV, Contact ±6KV)
Display
- DVI：Support up to 1920 x 1080@60Hz
- HDMI：Support up to 3840 x 2160@60Hz
Physical
- Dimensions ：L)200mm x (W)154.5mm x (H)57.6mm
- Weight：1.9Kg
- Box Structure：Aluminum-magnesium alloy BOX with fan embedded to assist cooling
Mounting
- Mount：Wall-mounted or DIN-Rail fixing style
Operating System
- Microsoft Windows：Windows 10 IoT
- Linux：UbuntuUbuntu, CentOS, Debian
Power
- Input Voltage：DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection
- Consumption：Max. 120W
Environment
- Work temperature：-20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD)
- Storage Temperature：-40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD)
- Relative Humidity：5~95% (Non-condensing)
- Vibration：5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
- Shock：20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
- EMC：CE/FCC Class A
Other
- WatchDog：1~255 levels programmable
Expansion Slot
- MiniPCIe：1 x Full-size PCIe Mini slot with SIM card holder(with USB signal)
- Optional Expansion：NP-6122 has 9 expansions, CAN2, JH2, JH3, JH4, JH2B, CAN2, L2, 8PoE, H1B and H1. See order information for details
Datasheet Download
Driver Download
|
Driver Name
|
Operation system
|
Download link
|
|
NP-6122 series Driver for H110
|
Win7-10_32-64bit
|
Download
|
|
NP-6122 series Audio Driver
|
Win7_8_8.1_10_32-64bit
|
Download
|
|
NP-6122 series LAN driver
|
Win7_10_32-64bit
|
Download
|
|
NP-6122 series USB3.0 Driver
|
Win7_32_64bit
|
Download
|
|
NP-6122 series Graph Driver
|
Win7_8_10_11_32_64bit
|
Download
|
■Ordering Information
NP-6122 series: Separate Fan space, Support 6/7/8th generation LGA1151 sockeT type CPU (TDP max to 65watt), 2x SO-DIMM DDR4 RAM up to 32GB, 1x mSATA, 1x M.2 (2280 TYPE), DC12~24V, option wall mounted and Din-rail
NP-6132 series: Separate Fan space, Support 10/11th generation LGA1200 sockeT type CPU (TDP max to 65watt), 2x SO-DIMM DDR4 RAM up to 32GB, 1x mSATA, 1x M.2 (2280 TYPE), DC12~24V, option wall mounted and Din-rail
|
Product |
LAN |
PoE |
USB |
COM |
DIO |
Light source control |
CAN |
Display |
mini PCIe |
|
NP-6122/NP-6132
|
2
|
/ |
4 |
2x RS232/485 |
/ |
/ |
/ |
1 x DVI-D
1 x HDMI
|
1x mini PCIe |
|
NP-6122-8PoE/NP-6132-8PoE
|
2
|
8 |
4 |
2x RS232/485 |
/ |
/ |
/ |
1x mini PCIe |
|
NP-6122-CAN2/NP-6132-CAN2
|
2
|
/ |
4 |
2x RS232/485 |
/ |
/ |
2 |
/ |
|
NP-6122-H1/NP-6132-H1
|
2
|
4 |
4 |
2 x RS232/485
|
8 DI, 8 DO
|
4 |
/ |
1x mini PCIe |
|
NP-6122-H1B/NP-6132-H1B
|
2
|
4 |
4 |
2 x RS232/485 |
16 DI, 16 DO
|
/ |
/ |
1x mini PCIe |
|
NP-6122-JH2/NP-6132-JH2
|
2
|
2 |
4 |
2 x RS232/485 |
8 DI, 8 DO
|
4 |
/ |
1x mini PCIe |
|
NP-6122-JH2B/NP-6132-JH2B
|
2
|
2 |
4 |
2 x RS232/485 |
16 DI, 16 DO
|
4 |
/ |
1x mini PCIe
|
|
NP-6122-JH3/NP-6132-JH3
|
2
|
/
|
8
|
4 x RS232/485 |
8 DI, 8 DO
|
/
|
1 or 2
|
1x mini PCIe
|
|
NP-6122-JH4/NP-6132-JH4
|
2
|
/
|
4
|
2 x RS232/485
8 x RS485
|
8 DI,
4 Relay DO
|
/
|
/
|
1x mini PCIe
|
|
NP-6122-L2/NP-6132-L2
|
4 |
/ |
4 |
2 x RS232/485 |
/
|
/
|
/ |
/ |
■NP-6122 Series Options
|
Parts |
Description |
|
CPU |
Intel® Pentium G3900, G4400
|
|
Intel® Core™ Skylake: i3-6100,i3-6100T,i5-6400,i5-6400T,i5-6500,i5-6500T,i7-6700,i7-6700T
|
|
Intel® Core™ Kaby Lake:i3-7100,i5-7400,i5-7500,i7-7700,i7-7700T
|
|
Intel® Core™ Coffee Lake: i3-8100,i5-8400,i5-8500,i7-8700
|
|
DDR4 Memory |
DDR4-2400MHz , 4GB, 8GB, 16GB
|
|
mSATA SSD
|
64GB, 128GB, 256GB, 512GB，1TB
|
|
M.2 SATA SSD |
128 GB, 256GB, 512GB, 1TB, 2TB
|
|
Wifi Set |
miniPCIE WIFI Set (7260 series) ,Cylindrical antenna
|
|
3G/4G Module |
mini PCIE，EC20, EG25, EC25
|
|
Mount Option |
DIN-Rail, Wall-mounted
|
