DC12~24V Power input
DC12~24V Power supply with overcurrent
Overvoltage and polarity inverse protection
|
 |
|
|

|
Easy to switch RS232/RS485
RS232/RS485 support automatic data flow control
|
|
|
|
|
An USB 2.0 inside for USB dongle
Convenient can safe for build in USB dongle
Vertical USB interface is provided inside the machine to prevention of loss
|
.png)
|
|
|

|
Optimized to guarantee the real-time performance
Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load
Customized Logo
|
|
|
|
|
Separate space for Fan
With good quality and perfect design for dust-proof protection
|
 |
|
|
Processor
- CPU:Intel® Core™ 6/7/8/9th generation i7/i5/i3/pentium/celeron LGA1151 type CPU. Max.65W TDP
- Memory:2 x SO-DIMM DDR4-2400MHz,max up to 32GB
- DIMM:2 x 260-pin SODIMM
- Storage Medium:1 x mSATA bay;1 x M.2(B Key, Type 2280) bay support SATA
- BIOS:AMI EFI 64Mbit
I/O Interface
- LAN:4 x Intel GbE LAN controller
- USB:4 x USB3.0, 1 x USB2.0 Type A on the board for USB dongle
- COM:2 x COM(DB-9), selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control, (ESD protection for RS232: Air gap ±8KV, Contact ±6KV)
Display
- DVI:Support up to 1920 x 1080@60Hz
- HDMI:Support up to 3840 x 2160@60Hz
Physical
- Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
- Weight:2.0 Kg
- Box Structure:Aluminum-magnesium alloy BOX with fan embedded to assist cooling, Wall- mounted
Mounting
- Mount:Wall-mounted or DIN-Rail fixing style
Operating System
- Microsoft Windows:Windows 10 IoT
- Linux:Ubuntu, CentOS, Debian
Power
- Input Voltage:DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection
- Consumption:Max. 120W
Environment
- Work temperature:-20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD)
- Storage Temperature:-40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD)
- Relative Humidity:5~95% (Non-condensing)
- Vibration:5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
- Shock:20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
- EMC:CE/FCC Class A
Other
- WatchDog:1~255 levels programmable
Driver Download
Driver Name
|
Operation system
|
Download link
|
NP-6122 series Driver for H110
|
Win7-10_32-64bit
|
Download
|
NP-6122 series Audio Driver
|
Win7_8_8.1_10_32-64bit
|
Download
|
NP-6122 series LAN driver
|
Win7_10_32-64bit
|
Download
|
NP-6122 series USB3.0 Driver
|
Win7_32_64bit
|
Download
|
NP-6122 series Graph Driver
|
Win7_8_10_11_32_64bit
|
Download
|

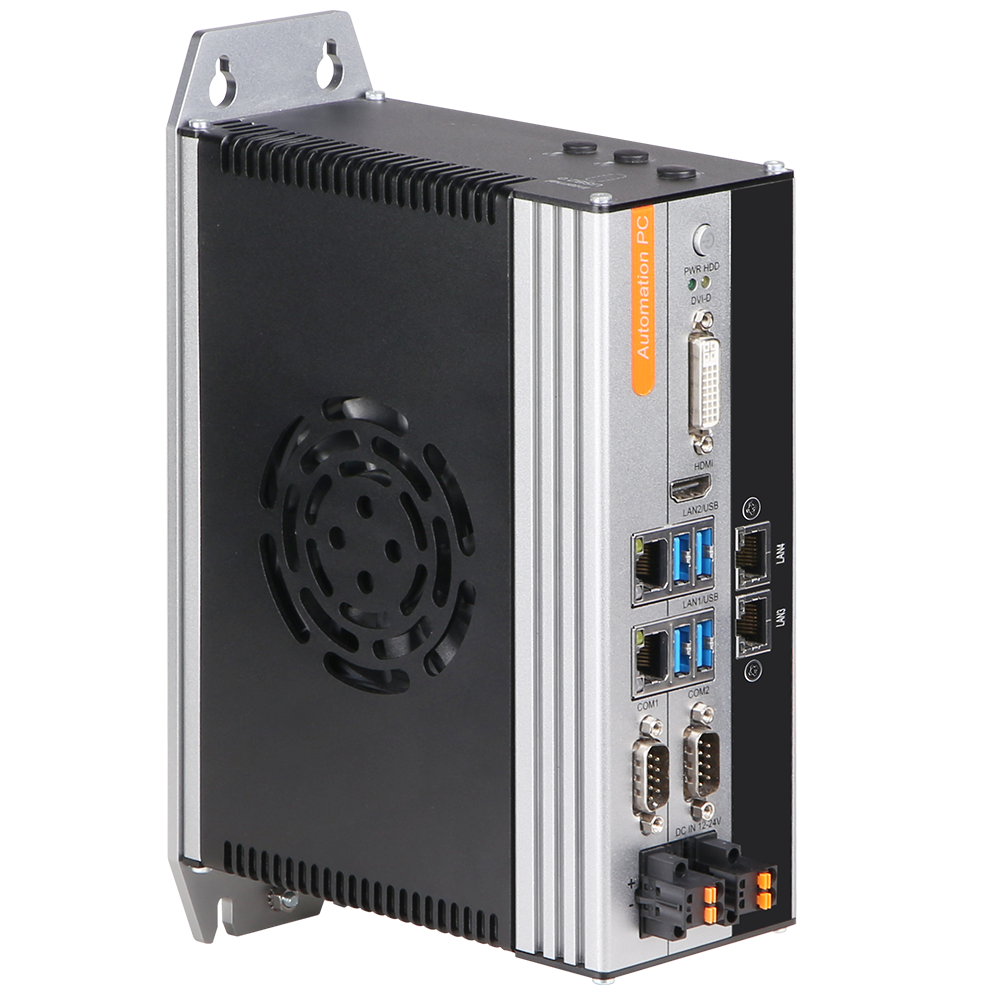

NP-6122-L2
CPU:NULL,RAM:NULL,mSATA:NULL, 2 x RS232/485(Selectable), 4 x LAN, 4 x USB3.0, DVI-D/HDMI display port, DC12~24V Power input
Parts |
Description |
CPU |
Intel® Pentium G3900, G4400
|
Intel® Core™ Skylake: i3-6100,i3-6100T,i5-6400,i5-6400T,i5-6500,i5-6500T,i7-6700,i7-6700T
|
Intel® Core™ Kaby Lake:i3-7100,i5-7400,i5-7500,i7-7700,i7-7700T
|
Intel® Core™ Coffee Lake: i3-8100,i5-8400,i5-8500,i7-8700
|
DDR4 Memory |
DDR4-2400MHz , 4GB, 8GB, 16GB
|
mSATA SSD
|
64GB, 128GB, 256GB, 512GB,1TB
|
M.2 SATA SSD |
128GB, 256GB, 512GB, 1TB, 2TB
|
Mount Option |
DIN-Rail
|
