NP-6122-JH4 | Automation PC i3/i5/i7

NP-6122-JH4 | Automation PC i3/i5/i7

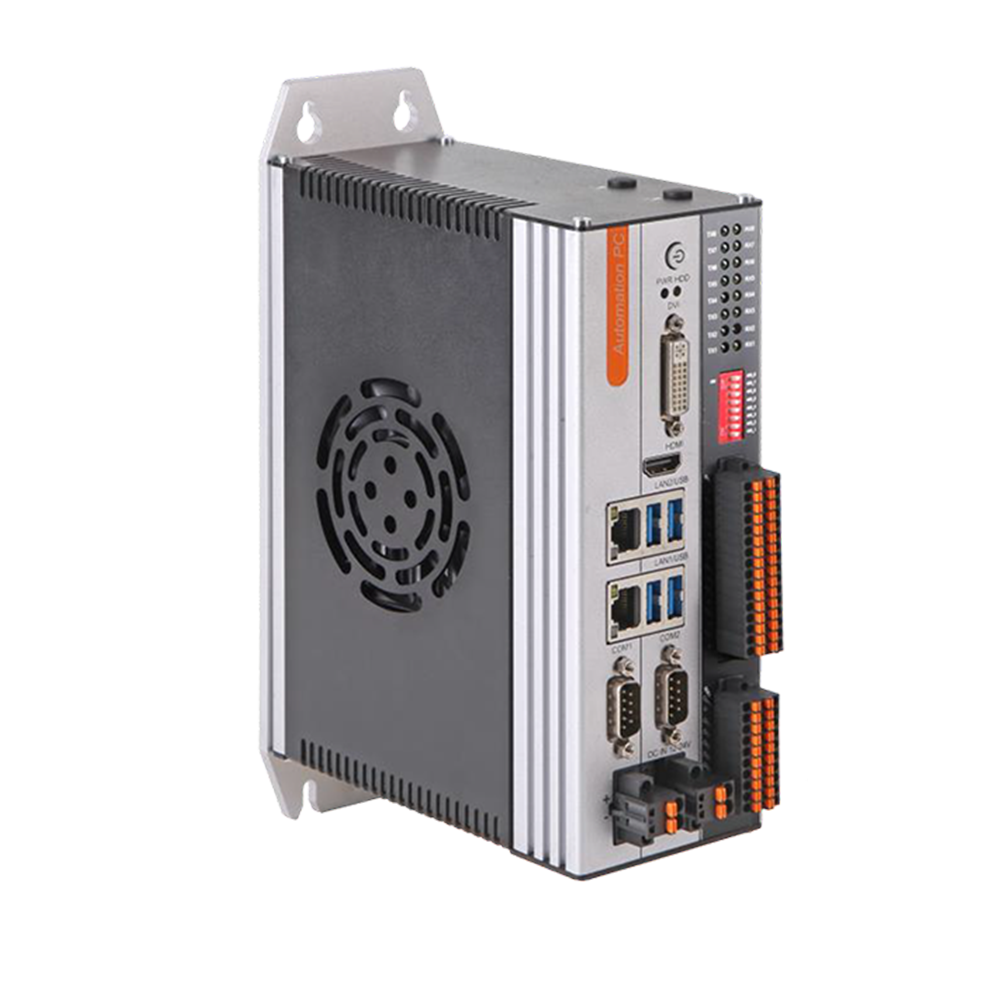

Automation PC, Intel® Core™ 6/7/8/9th gen i7/i5/i3, Pentium, Celeron Desktop High Performance CPU; PoE, DIO and Light control All In One Design

Support Intel® Core™ 6/7/8th/9th Gen. i7/i5/i3/Pentium/Celeron high performance processors,Max.65W TDP

2 x Intel i210-AT Gbe LAN controller

4 x USB3.0, USB2.0 Type A on board for dongle

2 x RS-232/485(DB9),8 x RS-485(Phoenix connectors), RS-485 support auto flow control

1 x miniPCIE expansion slot,Support Wifi,3G/4G modules

8 x isolated DI, 4 x Relay DO

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Fully enclosed structure, no cable design and sturdy aluminum profile chassis with fan embedded to get a better cooling system

Wide operating temperature -20 ~ 60℃ supported


DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection

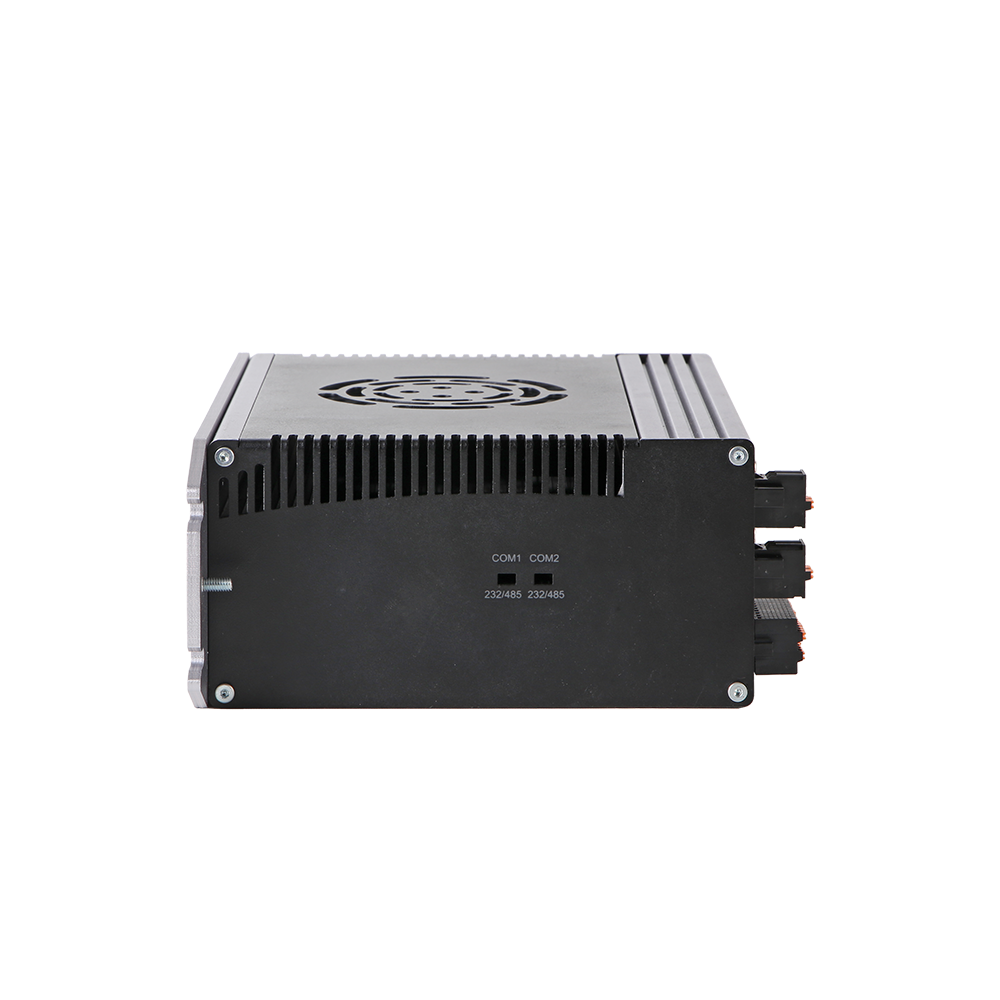

Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control






An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss




Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

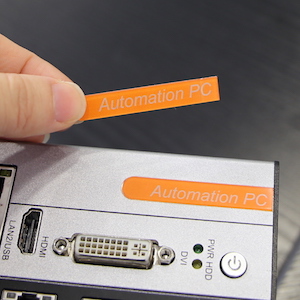

Customized Logo




Separate space for Fan

With good quality and perfect design for dust-proof protection







  • CPU:Intel® Core™ 6/7/8/9th generation i7/i5/i3/pentium/celeron LGA1151 type CPU. Max.65W TDP
  • Memory capacity:DDR4-2400MHz, 8GB pre-installed(system max: 32GB)
  • DIMM:2 x 260-pin SODIMM
  • Storage Medium:1 x Full-size PCIe Mini slot support mSATA
  • BIOS:AMI EFI 64Mbit

I/O Interface

  • LAN:2x Intel I210/I211-AT 10/100/1000Mbps controller
  • USB:4 x USB3.0(USB2.0 compliant), 1 x USB2.0 Type A on the board for USB dongle
  • COM:2 x COM(DB-9), optical isolated, selectable to support RS-232 or 485 mode by the switch, 8 x RS-485(Phoenix Connectors), RS-485 support auto flow control, send and receive status LEDs, 120Ω terminating resistors can be enabled by switches. (ESD protection for RS-232: Air gap ±8KV, Contact ±6KV)
  • DI:8 x DI NPN,isolated 2500 Vrms
  • DO:4 x Relay output


  • DVI:Support up to 1920 x 1080@60Hz
  • HDMI:Support up to 3840 x 2160@60Hz


  • Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
  • Weight:2.3kg
  • Box Structure:Aluminum-magnesium alloy BOX with fan embedded to assist cooling, Wall- mounted

Operating System

  • Microsoft Windows:Windows 10 IoT
  • Linux:Ubuntu


  • Input Voltage:12-24VDC ±10%, overcurrent, overvoltage and polarity inverse protection. Must be DC24V input in the case of using light control functionalities
  • Consumption:Typical:30W, 250W in maximum


  • Work temperature:-20 ~ 60℃(-4℉~140℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Storage Temperature:-40 ~ 80℃ (-40 ~ 176℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Relative Humidity:5~95% (Non-condensing)
  • Vibration:SSD : 1.5 Grms, IEC 6006 x -2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 6006 x -2-64, half-sine wave, 11ms duration
  • EMC:CE/FCC Class A


Datasheet Download



Driver Download


Driver Name

Operation system

Download link

NP-6122 Chipset Driver



NP-6122 USB3.0 Driver



NP-6122 LAN Driver



NP-6122 Display Driver



NP-6122 TXEI Driver





CPU:NULL,RAM:NULL,mSATA:NULL, 2 x RS232/485(Selectable), 8 x RS485, 2 x LAN, 4 x USB3.0, DVI-D/HDMI display port, 8 x DI, 4 x Relay DO, DC12~24V Power input

Parts Description

Intel® Pentium


Intel® Core™ Skylake


Intel® Core™ Kaby Lake


Intel® Core™ Coffee Lake


DDR4 Memory

DDR4-2400MHz , 4GB, 8GB, 16GB


mSATA,64GB, 128GB, 256GB, 512GB … …


miniPCIE WIFI Set (7260HMWBN) ,Cylindrical antenna

4G set, EC20 3G Modules
