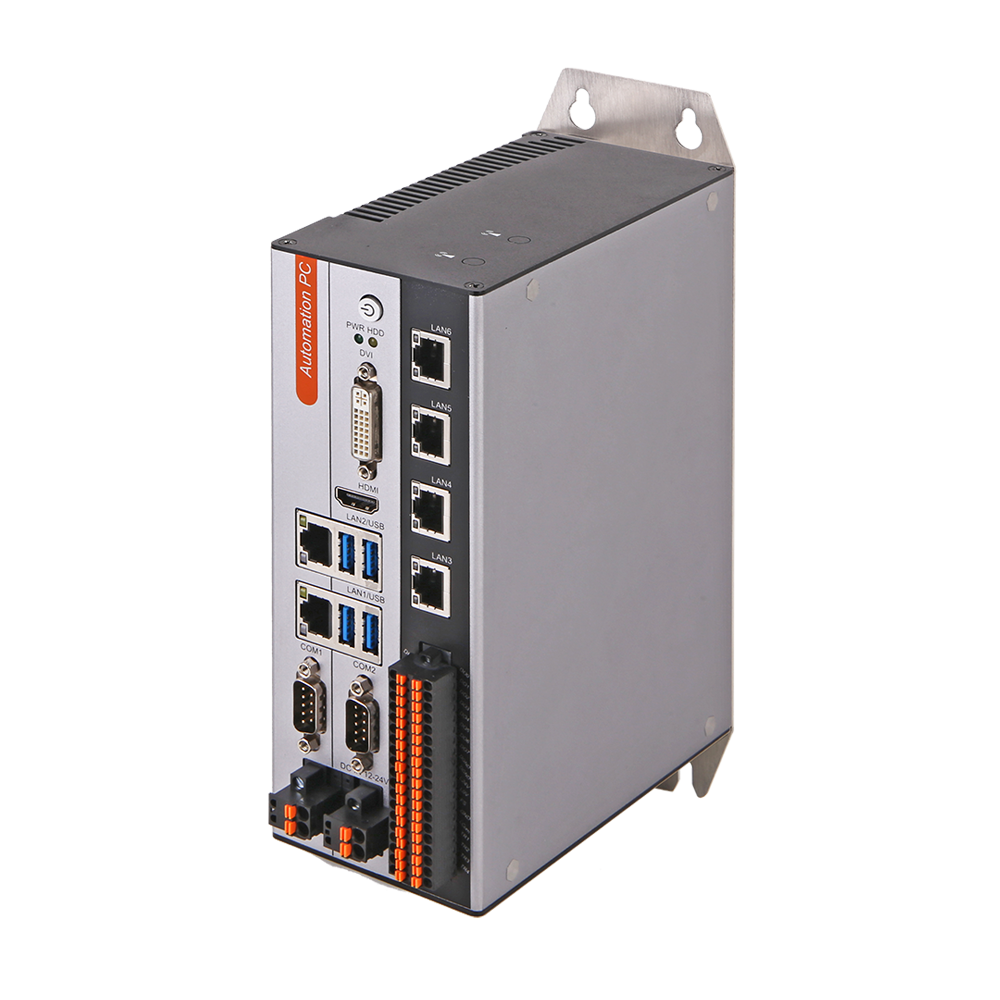

NP-6122-H1 | Automation PC i3/i5/i7

NP-6122-H1 | Automation PC i3/i5/i7

Automation PC, Intel® Core™ 6/7/8 gen i7/i5/i3, Pentium, Celeron Desktop High Performance CPU; PoE, DIO and Light control All In One Design

Support Intel® Core™ 6/7/8th Gen. i7/i5/i3/pentium/Celeron high performance processors,Max.65W TDP

2 x Intel i210-AT Gbe LAN controller

4 x USB3.0, USB2.0 Type A on board for dongle

2 x RS-232/485,RS-485 support auto flow control

1 x miniPCIE expansion slot,Support Wifi,3G/4G,CAN modules

4 x Intel i210-AT Gbe LAN, PoE, 15w

4 x PWM light control support external trigger input

16 x isolated DIO, 8 x DI, 8 x DO

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Fully enclosed structure, no cable design and sturdy aluminum profile chassis with fan embedded to get a better cooling system

Wide operating temperature -20 ~ 60℃ supported




DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection

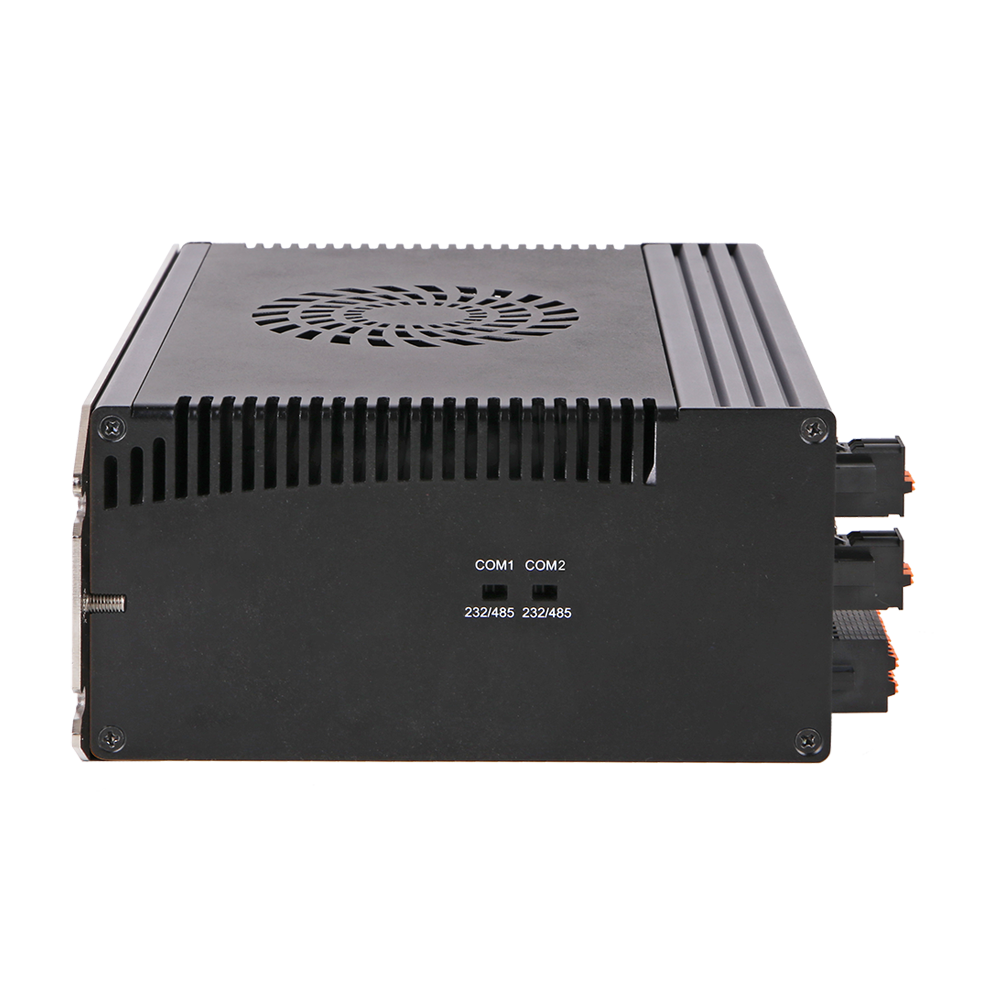

Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control













An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss










Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

Customized Logo









Separate space for Fan

With good quality and perfect design for dust-proof protection










Processor

  • CPU:Intel® Core™ 6/7/8 generation i7/i5/i3/pentium/celeron LGA1151 type CPU. Max.65W TDP
  • Memory capacity:DDR4-2400MHz, 8GB pre-installed(system max: 32GB)
  • DIMM:2 x 260-pin SODIMM
  • Storage Medium:1 x Full-size PCIe Mini slot support mSATA
  • BIOS:AMI EFI 64Mbit

I/O Interface

  • LAN:2 x Intel I210-AT 10/100/1000Mbps controller
  • USB:4 x USB3.0(USB2.0 compliant), 1 x USB2.0 Type A on the board for USB dongle
  • COM:2 x COM(DB-9), optical isolated, selectable to support RS-232 or 485 mode by the switch, RS-485 support auto flow control,(ESD protection for RS-232: Air gap ±8KV, Contact ±6KV)
  • DI:8 x DI NPN,isolated 2500 Vrms
  • DO:8 x DO Imax:0.5A per channel,isolated 2500 Vrms
  • Rear I/O:8 x DI NPN or PNP(optional),isolated 2500 Vrms

Display

  • DVI:Support up to 1920 x 1080@60Hz
  • HDMI:Support up to 3840 x 2160@60Hz

Physical

  • Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
  • Weight:2.4 Kg
  • Box Structure:Aluminum-magnesium alloy BOX with fan embedded to assist cooling, Wall- mounted

Operating System

  • Microsoft Windows:Windows 10 IoT
  • Linux:Ubuntu

Power

  • Input Voltage:12-24VDC ±10%, overcurrent, overvoltage and polarity inverse protection. Must be DC24V input in the case of using light control functionalities
  • Consumption:Typical:30W ,250W in maximum

Environment

  • Work temperature:-20 ~ 60℃(-4℉~140℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Storage Temperature:-40 ~ 80℃ (-40 ~ 176℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Relative Humidity:5~95% (Non-condensing)
  • Vibration:SSD : 1.5 Grms, IEC 6006 x -2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 6006 x -2-64, half-sine wave, 11ms duration
  • EMC:CE/FCC Class A



Datasheet Download





Driver Download



Driver Name

Operation system

Download link

NP-6122 Chipset Driver

Win8_Win10_64bit

Download

NP-6122 USB3.0 Driver

Win8_Win10_64bit

Download

NP-6122 LAN Driver

Win8_Win10_64bit

Download

NP-6122 Display Driver

Win8_10_64bit

Download

NP-6122 TXEI Driver

Win8_10_64bit

Download



NP-6122-H1

CPU:NULL,RAM:NULL,mSATA:NULL, 2 x RS232/485(Selectable), 2 x LAN, 4 x USB3.0,DVI-D/HDMI display port, 8 x DI, 8 x DO, 4 x Light control, 4 x External trigger input, 4 x PoE LAN, DC12~24V Power input(must be DC24V when using Light control)

Parts Description
CPU

Intel® Pentium

G4400

Intel® Core™ Skylake

I3-6100,I3-6100T,I5-6400,I5-6400T,I5-6500,I5-6500T,I7-6700,I7-6700T

Intel® Core™ Kaby Lake

I3-7100,I5-7400,I5-7500,I7-7700,I7-7700T

Intel® Core™ Coffee Lake

I3-8100,I5-8400,I5-8500,I7-8700

DDR4 Memory

DDR4-2400MHz , 4GB, 8GB, 16GB

 SSD

mSATA,64GB, 128GB, 256GB, 512GB … …

Wifi

miniPCIE WIFI Set (7260HMWBN) ,Cylindrical antenna

4G set, EC20 3G Modules

mini PCIE,Support GSM、WCDMA、CDMA
