NP-6111-JH2B | Automation PC J1900/E3845/J3455/J6412

NP-6111-JH2B | Automation PC J1900/E3845/J3455/J6412

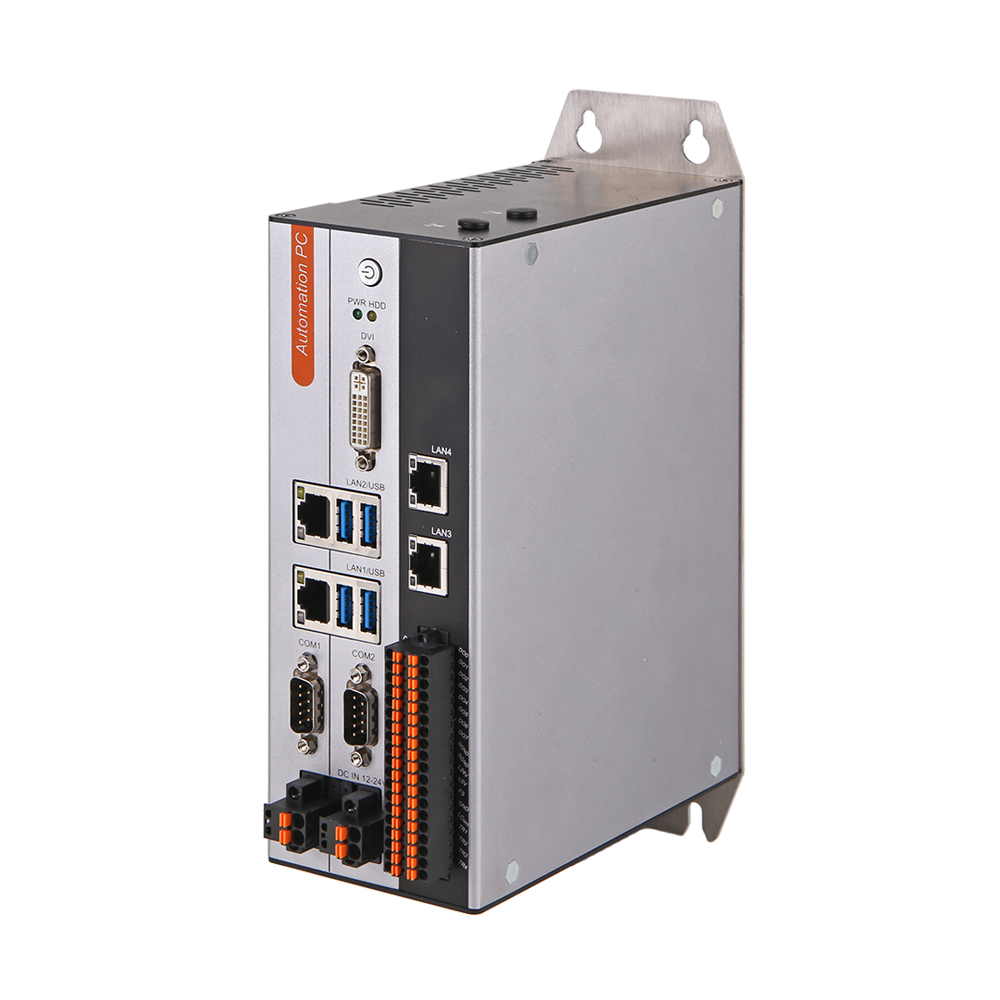

Fanless automation PC, Celeron J1900 2.0GHz, 4 cores low power consumption processor

2 x Intel GbE LAN controller

4 x USB on the front, 1 x USB2.0 on board for USB dongle

2 x RS232/485,RS485 support auto flow control

2 x Intel GbE PoE LAN, max. 15w per channel.

16 x isolated DI, 16 x isolated DO

1 x miniPCIE expansion slot,support Wifi,3G/4G modules

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Support wall-mounted or DIN-Rail fixing style

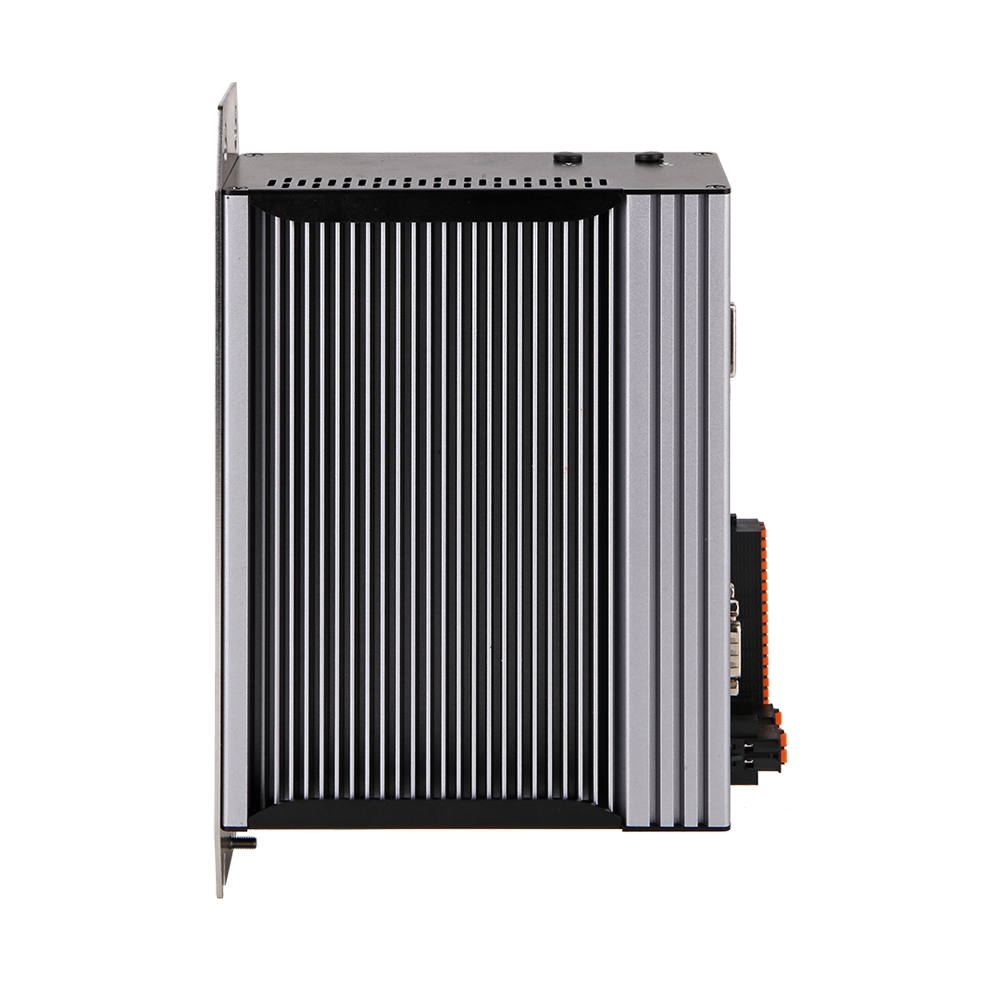

Fully enclosed structure, fanless and no cable design

Wide operating temperature -20 ~ 60℃ supported




DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection








Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control













An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss










Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

Customized Logo











Processor

  • CPU:Intel® Celeron J1900/J3455/J6412/Intel® Atom E3845
  • Frequency:2.0GHz, 4 cores/4 threads / 1.5~2.3GHz, 4 cores/4 threads / 2.0~2.6GHz, 4 cores/4 threads 1.91GHz, 4 cores/4 threads / 1.91GHz, 4 cores/4 threads
  • Memory:1 x SO-DIMM DDR3L-1333MHz (max. 8GB)/J6412:1 x SO-DIMM DDR4- 2400MHz (max. 16GB)
  • Storage Medium:1 x mSATA bay
  • BIOS:AMI UEFI 64Mbit

I/O Interface

  • LAN:2 x Intel GbE LAN controller
  • USB:J1900, E3845:1 x USB3.0, 3 x USB2.0/J3455, J6412:2 x USB3.0, 2 x USB2.0;1 x USB2.0 Type A on the board for USB dongle
  • COM:2 x COM(DB-9), selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control, (ESD protection for RS232: Air gap ±8KV, Contact ±6KV)
  • DI:16 x DI NPN/PNP,isolated 2500 Vrms
  • DO:16 x DO, Transistor output, Imax:0.5A per channel,isolated 2500 Vrms
  • PoE:2 x Intel GbE PoE LAN controller, max. 15W per channel

Display

  • DVI:Support 1920 x 1080 @ 60Hz

Physical

  • Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
  • Weight:2.1Kg
  • Box Structure:Aluminum-magnesium alloy BOX, Fanless

Mounting

  • Mount:Wall-mounted or DIN-Rail

Operating System

  • Microsoft Windows:Windows 7, Windows 7 Embedded, Windows 10 IoT
  • Linux:Ubuntu, CentOS, Debian

Power

  • Input Voltage:DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection, (Must be DC24V when using Light Control)
  • Consumption:Max. 80W

Environment

  • Work temperature:-20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD)
  • Storage Temperature:-40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD)
  • Relative Humidity:5~95% (Non-condensing)
  • Vibration:5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
  • Shock:20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
  • EMC:CE/FCC Class A

Other

  • WatchDog:1~255 levels programmable

Expansion Slot

  • MiniPCIe:1 x Full-size PCIe Mini slot with SIM card holder(with USB signal)

Datasheet Download





Driver Download



Driver Name

Operation system

Download link

NP-6111 series Driver for J1900

Win10_64bit

Download

NP-6111 series Driver for 7200U

Win7_10_32_64bit

Download

NP-6111 series Chipest driver for J6412

Win10_64bit

Download

 NP-6111 series Audio Driver

Win7_8_8.1_10_32-64bit

Download

NP-6111 series LAN driver

Win7_10_32-64bit

Download

NP-6111 series USB3.0 Driver

Win7_32_64bit

Download

NP-6111 series Graph Driver

Win7_8_10_11_32_64bit

Download



IO Driver Download

■Ordering Information



Prduct Description
NP-6111-JH2B-J1900
CPU:J1900,RAM:NULL, mSATA: NULL, 2 x COM(RS232/485 selectable), 2 x LAN,
1 x USB3.0, 3 x USB2.0, DVI-D, 2 x PoE LAN, 16 x DI, 16 x DO, DC12~24V Power input
NP-6111-JH2B-E3845
CPU:J1900,RAM:NULL, mSATA: NULL, 2 x COM(RS232/485 selectable), 2 x LAN,
1 x USB3.0, 3 x USB2.0, DVI-D, 2 x PoE LAN, 16 x DI, 16 x DO, DC12~24V Power input
NP-6111-JH2B-J3455
CPU:J3455,RAM:NULL, mSATA: NULL, 2 x COM(RS232/485 selectable), 2 x LAN,
2 x USB3.0, 2 x USB2.0, DVI-D, 2 x PoE LAN, 16 x DI, 16 x DO, DC12~24V Power input
NP-6111-JH2B-J6412
CPU:J6412,RAM:NULL, mSATA: NULL, 2 x COM(RS232/485 selectable), 2 x LAN,
2 x USB3.0, 2 x USB2.0, DVI-D, 2 x PoE LAN, 16 x DI, 16 x DO, DC12~24V Power input



■Options

Parts Description
DDR3L Memory

DDR3L-1333MHz: 4GB, 8GB

DDR4 Memory

DDR4-2400MHz: 4GB, 8GB, 16GB

mSATA SSD

64GB, 128GB, 256GB, 512GB, 1TB

Wifi Set

miniPCIE WIFI Set (7260 series) ,Cylindrical antenna

3G/4G Module

mini PCIE: EC20, EG25, EC25

Mount Option

DIN-Rail
