NP-6111-JH2 | Automation PC J1900

NP-6111-JH2 | Automation PC J1900

Fanless automation PC, Celeron J1900 2.0GHz, 4 cores low power consumption processor

Intel® Celeron J1900, 2.0GHz, 4 cores low power consumption processor

2 x Intel I210-AT Gbe LAN controller

1 x USB3.0, 3 x USB2.0, 1 x USB2.0 on board for USB dongle

2 x RS-232/485,RS-485 support auto flow control

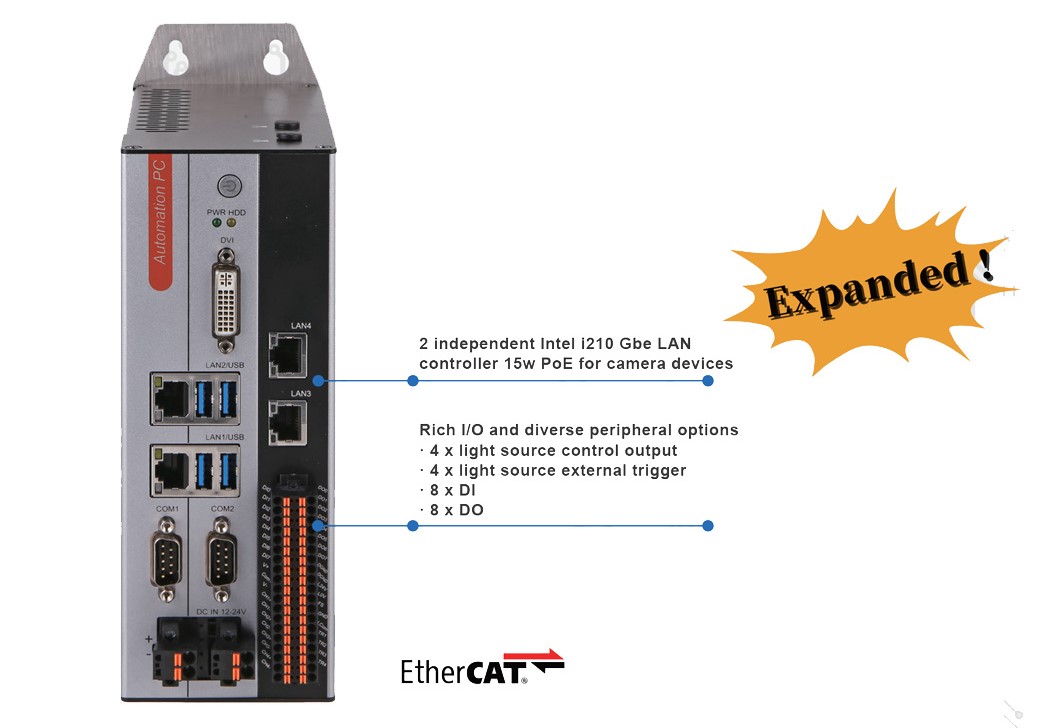

2 x Intel i210-AT Gbe LAN, PoE, 15w

4 x PWM light control support external trigger input

16 x isolated DIO(8 x DI, 8 x DO)

1 x miniPCIE expansion slot,Support Wifi,3G/4Gmodules

DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection

Fully enclosed structure, fanless and no cable design

Wide operating temperature -20 ~ 60℃ supported




DC12~24V Power input

DC12~24V Power supply with overcurrent

Overvoltage and polarity inverse protection








Easy to switch RS232/RS485

RS232/RS485 support automatic data flow control

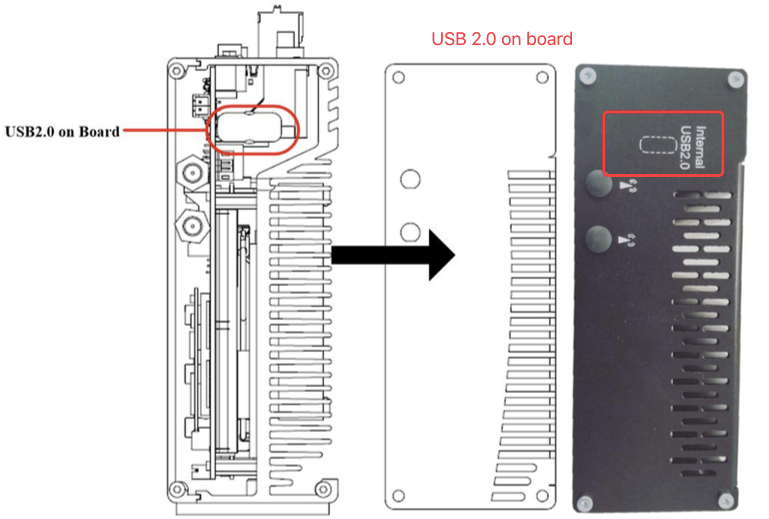

An USB 2.0 inside for USB dongle

Convenient can safe for build in USB dongle

Vertical USB interface is provided inside the machine to prevention of loss










Optimized to guarantee the real-time performance

Higher production efficiency with extremely fast control: max jitter < 2μs for Windows under 100% work load

Customized Logo











Processor

  • CPU:Intel® Celeron J1900, 2.0GHz, 4 cores/4 threads, 2MB L2 cache
  • Memory:1 x 204-pin SODIMM
  • Memory capacity:DDR3L-1333MHz, 4GB pre-installed (system max: 8GB)
  • DIMM:1 x 204-pin SODIMM
  • Storage Medium:1 x MSATA
  • BIOS:AMI UEFI 64Mbit

I/O Interface

  • LAN:2 x Intel I210-AT 10/100/1000Mbps controller
  • USB:1 x USB3.0(USB2.0 compliant), 3x USB2.0, 1 x USB2.0 Type A on the board for USB dongle
  • COM:2 x COM(DB-9), optical isolated, selectable to support RS-232 or 485 mode by the switch, RS-485 support auto flow control,(ESD protection for RS-232: Air gap ±8KV, Contact ±6KV)
  • DI:8 x DI NPN,isolated 2500 Vrms
  • DO:8 x DO Imax:0.5A per channel,isolated 2500 Vrms

Display

  • DVI:Support 1920 x 1080 @ 60Hz

Physical

  • Dimensions :(L)200mm x (W)154.5mm x (H)74.6mm
  • Weight:2.1Kg
  • Box Structure:Aluminum-magnesium alloy BOX, Fanless, Wall-mounted

Operating System

  • Microsoft Windows:Windows 7, Windows 7 Embedded, Windows 10 IoT
  • Linux:Ubuntu

Power

  • Input Voltage:DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection
  • Consumption:Typical: 10W, Max: 45W

Environment

  • Work temperature:-20 ~ 60°C (-4~140°F) with air flow (mSATA), 5 ~ 95% (Non-condensing)
  • Storage Temperature:-40 ~ 80℃ (-40 ~ 185℉) with air flow (mSATA), 5~95% (Non-condensing)
  • Vibration:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
  • EMC:CE/FCC Class A



Datasheet Download





Driver Download



Driver Name

Operation system

Download link

NP-6111 Chipset Driver

Win7_32_64bit_Win8_10_64bit

Download

NP-6111 USB3.0 Driver

Win7_32_64bit

Download

NP-6111 LAN Driver

Win7_32_64bit_Win8_10_64bit

Download

NP-6111 Display Driver

Win7_32_64bit_Win8_10_64bit

Download

NP-6111 TXEI Driver

Win7_32_64bit_Win8_10_64bit

Download



Certificates

NP-6111-JH2-J1900

CPU:J1900,RAM:NULL, mSATA:NULL, 2 x RS232/485(Selectable), 2 x LAN, 1 x USB3.0,
3 x USB2.0, DVI-D display port, 8 x DI, 8 x DO, 4 x Light control, 4 x External trigger input, 2 x PoE LAN, DC12~24V Power input(must be DC24V when using Light control)

Parts Description
DDR3 Memory

DDR3L-1333MHz , 4GB, 8GB

SSD

mSATA, 64GB, 128GB, 256GB, 512GB

Wifi Set

miniPCIE WIFI Set (7260HMWBN) ,Cylindrical antenna

4GSet, EC20 3G Module

mini PCIE,Support GSM、WCDMA、CDMA
