Rugged aluminum and galvanized steel chassis
Software dongle design
|
 |
 |
Optimized for Industrial Applications
Wide Work Temperature, system operating temperature supports -20 up to +60°C
Cable connection as little as possible
Flexible expansion slots
|
Processor
- CPU：Intel® Core™ 2nd / 3rd i7 / i5 / i3 / Pentium / Celeron, LGA1155
- Frequency：1.4GHz~3.3GHz
- Chipset：Intel B75 Express Chipset
- Memory architecture：DDR3-1066 / 1333 / 1600MHz ( Only Ivy bridge can fit for 1600MHz)
- Memory capacity：up to 16GB
- DIMM：2 x 204-pin SODIMM
- L2 Cache：Up to 8MB
- BIOS：AMI EFI 16Mbit

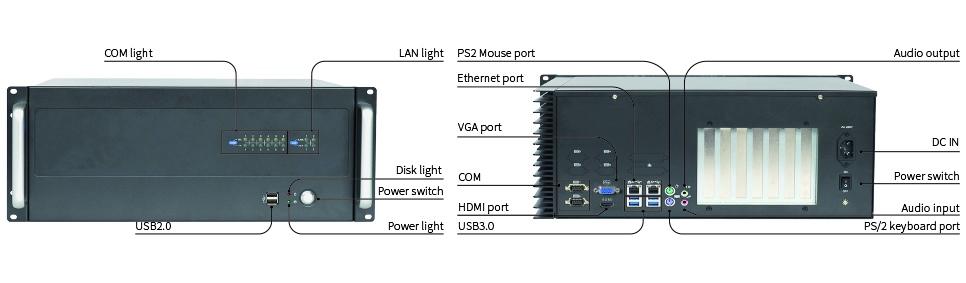

I/O Interface
- LAN：LAN1: Intel WG82583V GbE LAN controller; LAN2: Intel WG82583V GbE LAN controller
- USB：4 x USB3.0/2.0/1.1, 2 x USB2.0/1.1
- COM：6 x RS-232
- Audio：Realtek ACL662 Audio controller, Line-out, Mic-in.
- LPT：1, support SPP/EPP/ECP mode
- PS2：1 x PS2 Keyboard + 1 x PS2 Mouse
Display
- Display controller：Intel®HD GT2 3000/4000 Series Display controller, 200MHz~1.2GHz
- Graphics engine：DirectX 11, OpenGL3.1, OpenCL1.1 support；Hardware encoding/decoding: MPEG2/MPEG4；Hardware encoding/decoding: H.264/VC1/MVC
- VGA：Up to 1920 x 1200
- DVI：Support 1920 x 1200
- Dual display：Yes, VGA + DVI
Physical
- Dimensions ：482.6mm x 177.8mm x 364.2mm (19" * 7" * 14.34")
- Box Structure：Fanless Full steel box structure，Large area designed aluminum radiating finned heat sinks
Mounting
- Mount：19-inch standard rack-mounted
Power
- Input Voltage：AC90 ～ 132V/AC180~264V
- Type：AT
Environment
- Work temperature：-20 ~ 60° C (-4℉~140℉) (Wide temperature SSD); 0 ~ 45° C (32℉~113℉) (General temperature HDD/SSD)
- Storage Temperature：-40 ~ 80℃ (-40 ~ 176℉)
- Relative Humidity：5~95% (Non condensation)
- Vibration：SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
- Shock：SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
- EMC：CE/FCC Class A
- Safety Certification：CCC
Driver Download
|
Driver Name
|
Operation system
|
Download link
|
|
IPC615F ME Driver for H110
|
Win10_64bit
|
Download
|
|
IPC615F USB 3.0 Driver
|
Win7_32-64bit
|
Download
|
|
IPC615F Audio Driver for Realtek ALC897
|
Win7-8-8.1-10_32-64bit
|
Download
|
|
IPC615F LAN Driver for Intel 219
|
Win7-10_32-64bit
|
Download
|
|
IPC615F LAN Driver for Inter 211-210
|
WinXP-32bit
|
Download
|
|
IPC615F LAN Driver for Inter 211-210
|
Win7-10_32-64bit
|
Download
|
|
IPC615F LAN Driver for Inter 211-210
|
Win7-10_32-32bit
|
Download
|
|
IPC615F Graphics driver for Inter 630
|
Win10_64bit
|
Download
|
|
IPC615F Graphics driver for Inter 530
|
Win10_32bit
|
Download
|
|
IPC615F Graphics driver for Inter 530
|
Win8_64bit
|
Download
|
|
IPC615F Graphics driver for Inter 530
|
Win7_64bit
|
Download
|
|
IPC615F Graphics driver for Inter 530
|
Win7-8-10_64bit
|
Download
|
|
IPC615F Graphics driver for H110
|
Win7-Win10_32-64bit
|
Download
|
IPC615F(eBOX-3632H): No CPU/No Memory/No Hard Disk/6*RS232/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/DVI/VGA/Audio card/AC220V input/4PCI/1PCIe 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty
