IPC615H | Fanless Industrial PC

IPC615H | Fanless Industrial PC

4U-height and 19 inch rack-mount, based on IPC Intel® Core TM 2nd / 3rd i7 / i5 / i3 / Pentium / Celeron processor
  • Intel Core 2nd,3rd i7,I5,I3,Pentium,Celeron, LGA1155 processor

  • Intel B75 Express Chipset

  • 2x Realtek RTL-8111F Gbe LAN controller

  • 1x 2.5 inch HDD Bay,4 x SATA2.0 Port (Max. data transfer rate 3Gb/s)

  • 1x full size mSATA SSD

  • 2x RS232/485, up to 6 RS232

  • 4x USB3.0, 2x USB2.0

  • 1x PCIe x16 slot,1 x PCIe x4 slot,1 x PCIe x1 slot, 4 x 32bits PCI slot

  • Support WinXP, WinXP Embedded, Win 7, Win7 Embedded, Win8

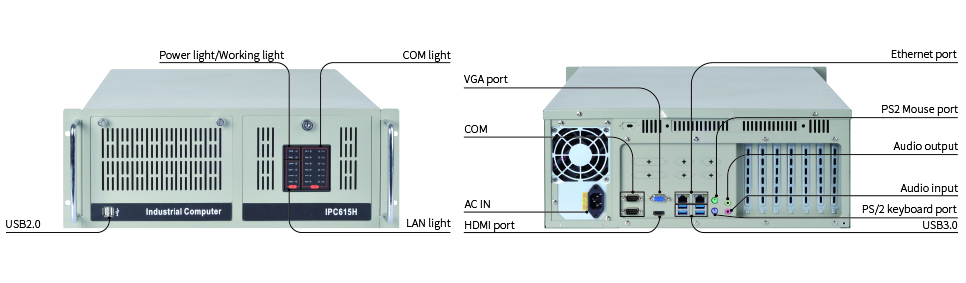

  • Rear I/O: 2COM/VGA/HDMI/2LAN/4USB/Audio/PS2



19-inch standard rack-mounted

Software dongle design

Optimized for Industrial Applications

Wide Work Temperature, system operating temperature supports -20 up to +60°C

Cable connection as little as possible

Flexible expansion slots





Processor

  • CPU:Intel® CoreTM 2nd / 3rd i7 / i5 / i3 / Pen um / Celeron, LGA1155
  • Frequency:1.4GHz~3.3GHz
  • Chipset:Intel B75 Express Chipset
  • L2 Cache:Up to 8MB
  • BIOS:AMI EFI 16Mbit
  • Memory architecture:DDR3-1066 / 1333 / 1600MHz ( Only Ivy bridge can t for 1600MHz)
  • Memory capacity:up to 16GB
  • DIMM:1 x 204-pin SODIMM

I/O Interface

  • LAN:LAN1: Realtek RTL-8111F Gbe LAN controller; LAN2: Realtek RTL-8111F Gbe LAN controller
  • Audio:Realtek ACL662 Audio controller, Line-out, Mic-in.
  • USB:4 x USB3.0/2.0/1.1, 2 x USB2.0/1.1
  • COM:2 x RS-232 ,optional RS-485,up to 6 RS-232(Op on)
  • LPT:1, support SPP/EPP/ECP mode (Op on)
  • PS2:1 x PS2 Keyboard + 1 x PS2 Mouse

Physical

  • Dimensions :482.6mm x 177.8mm x 430mm (19" * 7" * 16.93")
  • Net Weight:9.62kg (21.21lb)
  • Box Structure:Full steel box structure

Mounting

  • Mount:19-inch standard rack-mounted

Power

  • Input Voltage:AC90 ~ 132V/AC180~264V
  • Type:AT

Environment

  • Work temperature:-20 ~ 60° C (-4 °F ~140 °F ) (Wide temperature SSD) ;0 ~ 45° C (32 °F ~113 °F ) (General temperature HDD/SSD)
  • Storage Temperature:-40 ~ 80°C(-40 ~ 176°F)
  • Relative Humidity:5~95% (Non condensa on)
  • Shake:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms dura on
  • EMC:CE/FCC Class A
  • Safety Certification:CCC

Display

  • Display controller:Intel®HD GT2 3000/4000 Series Display controller, 200MHz~1.2GHz
  • Graphics engine:DirectX 11, OpenGL3.1, OpenCL1.1 support; Hardware encoding/decoding: MPEG2/MPEG4; Hardware encoding/decoding: H.264/VC1/MVC
  • VGA:Up to 1920 x 1200
  • DVI:Support 1920 x 1200
  • Dual display:Yes, VGA + DVI

Datasheet Download                                              Usermanual Download





Driver Download



Driver Name

Operation system

Download link

IPC615H Chipset Driver

WinXP_win7_win8_win10_32_64

Download

IPC615H Audio Driver

WinXP_win7_win8_win10_32_64

Download

IPC615H Graphics Driver

WinXP_win7_win8_win10_32_64

Download

IPC615H LAN Driver

WinXP_win7_win8_win10_32_64

Download

IPC615H USB 3.0 Driver

win7_win8_32_64

Download

IPC615H Intel ME Driver

WinXP_win7_win8_win10_32_64

Download



IPC-615H: Without CPU, Memory and Hard Disk/4*RS232/2*(RS232/485)/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/HDMI/VGA/Audio card/AC220V input/4PCI/1PCIe 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty

IPC615H-G2030-4G-SSD64G: G2030/4G/64G/4*RS232/2*(RS232/485)/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/HDMI/VGA/Audio card/AC220V input/4PCI/1PCIe 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty
